Wasson GC O-FID Oxygenated Components in Gasoline Analyzer

Using an Agilent Technologies 8890 with custom Wasson-ECE hardware, this instrument rapidly determines oxygenate components in motor fuels.

Approved for determining oxygenates in gasoline and other motor fuels by ASTM D5599 and EN 1601
The determination of oxygenates in motor fuels is an important mandate of the reformulated fuels program. To meet this goal, the United States Environmental Protection Agency approved the use of Oxygenate Flame Ionization Detector (O-FID) analysis in preference to other analyses currently used by the fuels industry.
<h5>Oxygen Selectivity</h5>
Using an Agilent Technologies 8890 GC with custom Wasson-ECE hardware, this instrument rapidly determines oxygenate components in motor fuels. A single injection is introduced onto a capillary column which separates oxygenate components in boiling point order. A cracking reactor converts hydrocarbons into elemental carbon, and oxygenated compounds into carbon monoxide. A methanizer then further converts the carbon monoxide into methane before eluting to the FID detector.
Because hydrocarbons never make it to the detector, this method completely eliminates problems with hydrocarbon interferences.
<h5>Single GC 8890 Instrument Configurations:</h5>
<ul>
<li>ASTM D5599 or EN1601 - Oxygenates in gasoline and other motor fuels by O-FID.
</li>
<li>O-FID with D3606 - Oxygenates by O-FID per ASTM D5599 and benzene and toluene in motor fuels by FID per ASTM D3606
</li>
<li>O-FID with D4815 - Oxygenates by O-FID per ASTM D5599 and oxygenates by FID per ASTM D4815
</li>
<li>O-FID with D4815 and D3606 - Oxygenates by O-FID per ASTM D5599, oxygenates by FID per D4815, and benzene and toluene by FID per ASTM D3606
</li>
</ul>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Altium_International_Wasson_O_FID_GC_analyzator_kyslikatych_latek_Ukazkovy_chromatogram_z_O_FI_Du_32e439263e.jpg" alt="Wasson: Example chromatogram from O-FID GC system"/>
<h5>Simple to Use and Operate</h5>
The Wasson-ECE O-FID has been engineered to provide long life and require infrequent service. When replacement of the cracking reactor or methanizer is necessary, the task can be accomplished in under one hour, including instrument equilibration time.
<h5>Precise Analyses</h5>
Repeatibility tests yield relative standard deviations (RSD) of approximately 1% by weight over a series of 10 runs for all major oxygenated components. The O-FID response is linear over four orders of magnitude. An automated injection device is recommended to provide the most reliable means of repeatable injection.
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Altium_International_Wasson_O_FID_GC_analyzator_kyslikatych_latek_Opakovatelnost_mereni_51c93d3988.jpg" alt="Wasson: GC O-FID Oxygenated Components in Gasoline Analyzer - Repeatibility tests"/>

Wasson-ECE GC RGA Refinery Gas Analyzers

Wasson-ECE Refinery Gas Analyzers (RGA) are an integral part of any HPI lab.

Wasson-ECE Refinery Gas Analyzers (RGA) are an integral part of any HPI lab. These instruments often carry the heaviest sample loads because of the critical information they provide. RGAs provide valuable information regarding plant operation, unit optimization, and quality control. Our RGA systems are designed for flexibility while maintaining the accurate and repeatable results our clients have come to expect.
As a premier channel partner of Agilent Technologies, Wasson-ECE extends the capabilities of the 8890 Gas Chromatograph to meet key requirements of refinery gas analysis. The Wasson-ECE RGA incorporates our specially designed auxiliary oven, which holds up to five additional rotary valves and six columns, extending the analysis capabilities far beyond traditional methods.
At Wasson-ECE we strive to produce a product that is innovative and state-of-the-art to help our customers overcome their analytical challenges. The flexibility of our RGA systems can ease bench space issues by combining analyses into a single instrument while maintaining an easy to service system with minimal downtime.
<h3>RGA Features</h3>
<ul>
<li>Complete range of analyzers for refinery and other petroleum gases and liquids
</li>
<li>vIncludes method development, selection of valves, and columns** in all configurations
</li>
<li>Dual TCDs and a single FID for the simultaneous analysis of fixed gases and hydrocarbons
</li>
<li>Wasson-ECE Auxiliary Oven which provides a second thermal zone
</li>
<li>Customized reports including calculations for mole %, weight %, or volume %, and calorific value available
</li>
<li>Optional liquid sampling valves or On-board Vaporizer expands the analytical capabilities to liquefied gases
</li>
<li>Optional fourth detector available on all Super RGA configurations
</li>
</ul>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Altium_International_Wasson_RGA_GC_analyzator_rafinerskych_plynu_Wasson_ECE_Moznosti_konfigurace_RGA_17545e3d4c.jpg" alt="Wasson: Wasson-ECE RGA Configuration Options"/>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Altium_International_Wasson_RGA_GC_analyzator_rafinerskych_plynu_Ukazkovy_chromatogram_standardni_RGA_1b72a88528.jpg" alt="Wasson: 383-Standard Refinery Gas Analysis"/>
<h3>Wasson-ECE Super RGA</h3>
Wasson-ECE has the unique ability to add a fourth detector to the GC, building our Super RGA series of analyzers. The additional detector expands the analytical capabilities of the standard RGA to accommodate applications such as sulfurs, oxygenates, heavy hydrocarbons, and trace CO/CO₂. This increased flexibility in configurations can reduce the number of GC’s used in a lab, saving clients valuable bench space and time.
<h5>Performance Guarantee</h5>
From hardware to analysis we stand behind our quoted application. Prior to shipping the instrument, chromatograms are submitted for customer approval. Performance is guaranteed to the clients actual sample, not just a generic standard. Any problems with the application during the first year are covered under warranty for an unparalleled performance guarantee.
<h3>The Wasson-ECE Turn-key Process</h3>
<h5>Sales</h5>
<ul>
<li>Application designed to customer&#39;s requirements</li>
</ul>
<h5>Factory Application</h5>
<ul>
<li>Method development and application setup</li>
<li>Customer samples are run to verify performance</li>
<li>Chromatograms are sent for client approval</li>
<li>Factory acceptance training if desired</li>
</ul>
<h5>Installation</h5>
<ul>
<li>Experienced Wasson Field Service Technician</li>
<li>Analysis of client’s real world samples</li>
<li>Calibration and familiarization</li>
</ul>
<h5>Customer Satisfaction</h5>
<ul>
<li>Follow up after installation</li>
<li>Knowledgeable and responsive service team</li>
<li>Optional preventative maintenance visits or service contracts</li>
</ul>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Altium_International_Wasson_RGA_GC_analyzator_rafinerskych_plynu_Ukazkove_chromatogramy_Super_RGA_c62a4d715e.jpg" alt="Wasson: Example chromatograms (Super RGA)"/>

Wasson GC DHA Hydrocarbon Expert software

DHA analysis easy and simple. Efficient analysis is now even more efficient. Hydrocarbon Expert software.

Wasson-ECE Dragon DHA is a fast, easy to use application for the detailed hydrocarbon analysis of petroleum products by high efficiency gas chromatography. Dragon DHA uses a convenient, graphical interface to provide a one-screen display for visually observing the chromatogram and manipulating the data calculations in order to obtain the optimum results for analysis and data presentation.
<h3>Dragon DHA Includes:</h3>
<ul>
<li>Quick database creation.
</li>
<li>Fast peak identification and results processing.
</li>
<li>“Unknown” tab lists unidentified peaks in order of concentration.
</li>
<li>“Unknown indexer” takes the user directly to the unknown peak for identification.
</li>
<li>Unique dashboard feature continuously presents the user with all calculated results and instantly recalculates when changes are made.
</li>
<li>Hydrocarbon group-type filtering.
</li>
<li>Full preview and printing of reports.
</li>
<li>Results are bound with chromatographic data for instant retrieval and archiving.
</li>
<li>Original files and data are never affected (CFR Part 11/ISO 17025).
</li>
<li>Result files are saved as netCDF (.AIA) format files and can be accessed by any third-party application that supports reading .AIA file format.
</li>
<li>Result files work as fully functional reference databases.
</li>
<li>Full reports are stored with results for easy retrieval without reprocessing.
</li>
</ul>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Altium_International_Wasson_Obrazek_1_Diagram_casti_DHA_chromatogramu_s_identifikovanymi_a_neidentifikovanymi_piky_b50386d9b9.jpg" alt="Wasson: Diagram of the part of the DHA chromatogram with identified and unidentified peaks. Hydrocarbon Expert greatly simplifies the identification of components by comparing the measured chromatogram with a reference."/>
<h3>Wasson-ECE Dragon DHA Software</h3>
Wasson-ECE Instrumentation Dragon DHA software uses integrated chromatographic data from commercial GC data systems, i.e. ChromPerfect, EZ Chrome, ChemStation. In fact, any GC data system capable of AIA (ANDI) file output is compatible with Dragon DHA.
<h3>Chemical and Physical Property Calculations</h3>
<ul>
<li>Vapor pressure</li>
<li>Oxygenate content</li>
<li>Relative density</li>
<li>Average molecular weight</li>
<li>Calculated research octane number</li>
<li>% carbon, % hydrogen</li>
<li>Calculated bromine number</li>
<li>Mass% and vol% multi-substituted ring aromatics</li>
<li>Total boiling point distribution</li>
<li>Wt%, vol%, mole% of group types by carbon number</li>
<li>Wt%, vol%, mole% of individual components</li>
</ul>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Altium_International_Wasson_Obrazek_5_V_software_lze_porovnavat_neomezeny_pocet_signalu_a_reportu_Srovnani_lze_provest_na_jakekoli_urovni_od_shrnuti_dle_skupin_po_vlastni_vypocty_9c06f36d16.jpg" alt="Wasson: An unlimited number of signals and reports can be compared in the software. Comparisons can be made at any level, from group summaries to custom calculations."/>

Wasson Pressurized Liquid Auto-sampler (LS100B)

Wasson-ECE Liquid Auto-Sampler (LS100B) offers laboratory automation for pressurized liquid samples such as liquefied petroleum gas (LPG) and natural gas liquids (NGL).

Wasson-ECE Liquid Auto-Sampler (LS100B) offers laboratory automation for pressurized liquid samples such as liquefied petroleum gas (LPG) and natural gas liquids (NGL).
The LS100B uses inert gases to maintain pressure so that the sample remains in the liquid state at ambient temperature as it passes to the GC for analysis.
The LS100B accommodates up to nine sample cylinders with 1/4 inch tube, VCO, or quick connect fittings. These fittings hold the sample cylinders vertically, ensuring that samples are drawn from the bottom of the cylinder.
<h4>Pressurized Liquid Auto-sampler Features</h4>
<ul>
<li>Purges automatically with carrier gas between each sample run
</li>
<li>Remote-starts the GC and the data recording software such as ChemStation™
</li>
<li>Adds a date/time stamp to all samples
</li>
<li>Holds up to nine 3.5 inch / 8.9 cm diameter sample cylinders
</li>
<li>Works with standard open or floating-piston sample cylinders
</li>
<li>Pauses automatically when it detects that the GC is not running or not ready
</li>
<li>Can interrupt the scheduled sample sequence to process a priority sample
</li>
</ul>

Wasson Dynamic Blender for GC (DB302)

The Dynamic Blender is a portable gas blending device that dilutes a sample or a certified standard with a matrix gas of choice.

Gas chromatography (GC) analyses often include trace level detection of components requiring samples or standards at low concentrations. Some analytes are expensive or difficult to purchase at low levels due to reactivity, adsorption, or high molecular weight. Analyses may also cover a wide concentration range, requiring multi-point calibration.
The Wasson-ECE Dynamic Blender (DB302) provides a simple solution to these calibration needs. The Dynamic Blender is a portable gas blending device that dilutes a sample or a certified standard with a matrix gas of choice. One certified standard with concentrations at the upper limit of the desired calibration curve can be diluted to a lower level (&gt;2 orders of magnitude lower) to create a full calibration curve.
An inert flow path and heated bridge eliminate adsorption and condensation problems when blending gas standards that include sulfur, nitrogen, and other reactive compounds.
An on-board flow controller allows the diluent gas flow to be controlled digitally and samples are fed directly to a gas chromatograph. The Dynamic Blender eliminates the need to purchase and store multiple gas cylinders and provides an easy, cost-effective solution for gas phase calibration needs.
<h4>Dynamic Blender Features</h4>
<ul>
<li>Approximately 100 pre-programmed pure diluent gases and mixtures and twenty user configurable diluent mixture slots.
</li>
<li>Maximum Diluent Pressure of 100 psi (leak tested to this pressure)
</li>
<li>Maximum Temperature of 150°C (operation verified at this temp.)
</li>
<li>Mass Flow Controller Range of 10 – 500 cc/min
</li>
<li>7 μm in-line gas filters (treated) are also provided
</li>
<li>Specially passivated tubing for trace reactive compounds (sulfurs, oxygenates, etc.)
</li>
</ul>
*This treatment is not suitable for samples with pH &gt; 8.0, so please notify your sales representative if you have high pH samples.

Wasson Variable Pressure Sampler (VPS)

The Variable Pressure Sampler (VPS) works in two ways to ensure the precision and accuracy of gas results.

The Variable Pressure Sampler (VPS) works in two ways to ensure the precision and accuracy of gas results. The first method is pressure correction, used to create uniform pressure among all injected samples and the calibration blend. The second method is multi-point calibration, which can deliver a calibration blend to the GC at various pressures.
The VPS pressure correction system performs a multi-step process that ensures samples and calibration blends are at uniform pressures when they are injected.
First, when the calibration blend is run through the GC, the VPS measures and stores the pressure of the calibration blend at the time of injection. Then, as each sample is injected at the stored pressure, the VPS adjusts the pressure of the sample to match the pressure of the calibration blend.
The inject pressure of the sample is reported to Agilent Technologies OpenLAB ChemStation software so calculations and quality control operations can be performed.
Using the VPS, calibration samples can be run at various pressures from a single standard. This decreases overall lab costs while ensuring greater accuracy in results. The multi-point calibration function allows testing for signal linearity at different pressures. With this feature, the user can easily pinpoint the range of pressures which generates the most accurate and meaningful results from the calibration standard.
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Wassson_Variable_Pressure_Sampler_VPS_linearity_77314725d6.jpg" alt="Wassson: Variable Pressure Sampler (VPS) - linearity"/>

Wasson LPG Vaporizer (1107)

The LPG Vaporizer uses an innovative, proprietary technique to vaporize liquid samples for injection in an existing GC system.

The LPG Vaporizer uses an innovative, proprietary technique to vaporize liquid samples for injection in an existing GC system. This convenient laboratory system offers flexibility and accuracy for both gas and liquid samples.
The LPG Vaporizer is more convenient than a typical liquid sample valve with more accurate results. All liquid samples are vaporized and run at a constant pressure, eliminating sample density changes that cause errors in liquid phase samples. This ensures sharp, easy-to-read peaks for all samples.
The LPG Vaporizer is built with specially passivated parts for analyzing trace reactive analytes such as sulfurs and oxygenates.
Wasson-ECE&#39;s unique, proprietary vaporization technique produces an even and accurate gas sample. Other vaporizers use tubing with a large volume, causing samples to fractionate when vaporized. This can lead to incomplete sample analysis. The LPG Vaporizer controls the injection volume so that all elements in the liquid sample are vaporized and sent to the GC simultaneously, producing a complete and accurate analysis of the sample.
<h4>LPG Vaporizer Features</h4>
<ul>
<li>Inject liquid and gas samples with a single valve
</li>
<li>High sample throughput
</li>
<li>Purging technique reduces cross-contamination
</li>
<li>Ability to stop sample flow to the GC at any time
</li>
<li>Controlled injection volume
</li>
<li>4 ft. heated bridge from vaporizer to customer&#39;s GC sample valve to prevent sample re-condensing
</li>
</ul>

Comprehensive Hydrocarbon Group-Type Analysis by ASTM D8396 (GC×GC-FID)

At LabRulez, we deliver high-resolution quantification of hydrocarbon group types in complex fuel matrices using GC×GC-FID with thermal modulation, fully compliant with ASTM D8396.

At LabRulez, we deliver high-resolution quantification of hydrocarbon group types in complex fuel matrices using GC×GC-FID with thermal modulation, fully compliant with ASTM D8396. This method is ideal for samples with boiling points between 36 °C and 451 °C, such as jet fuels, diesel, and synthetic blends.✔️ Detailed profiling of n-paraffins, iso-paraffins, naphthenes, and aromatics (one-ring, two+ rings) ✔️ Custom analysis options available—targeted compounds or stream-specific reporting upon request.This method provides precise and high-resolution profiling of hydrocarbon group types across a broad boiling range (36 °C to 451 °C). Using orthogonal GC×GC separation with polar and non-polar column chemistries, it offers unparalleled resolution of complex fuel matrices. Its performance has been validated through interlaboratory studies, making it ideally suited for quality assurance, process optimization, and regulatory compliance.ASTM D8396 quantifies key hydrocarbon classes—n-paraffins (up to C30), iso-paraffins, naphthenes, one-ring aromatics, and two-ring plus aromatics—with excellent repeatability across diverse fuel types. Results are generated using template-based quantification, ensuring consistency and reproducibility between samples and over time.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Precision_Range_wt_final_5079960ca7.jpg" alt="Table 1: Precision Range (wt. %)" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Precision_Range_wt_final_5079960ca7.jpg 245w," sizes="100vw" width="1600" height="631">This method may also be applied to other hydrocarbon types—such as benzene, toluene, and individual n-paraffins by carbon number—as well as alternative hydrocarbon streams. However, validated precision data is currently limited to the groups above.Targeted component analysis (e.g., BTEX, PAHs, or carbon-specific paraffins) and customized reporting are available upon request.<h5>Samples suitable for this technique include:</h5><ul><li>Jet fuel (Jet A, A-1, synthetic aviation fuels)</li><li>Paraffinic diesel and HVO (Hydrotreated Vegetable Oil)</li><li>Synthetic fuels (GTL, BTL, FT-diesel)</li><li>Gasoline and reformulated gasoline streams</li><li>Complex refinery intermediates with low olefin content</li></ul><h5>Sample Requirements and Logistics:</h5><ul><li>Sample Volume: 5 mL&nbsp;</li><li>Typical Turnaround: 3–5 business days</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Comprehensive_Hydrocarbon_Group_Type_Analysis_by_ASTM_D8396_GC_GC_FID_aea925cd0a.jpg" alt="Comprehensive Hydrocarbon Group-Type Analysis by ASTM D8396 (GC×GC-FID)" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Comprehensive_Hydrocarbon_Group_Type_Analysis_by_ASTM_D8396_GC_GC_FID_aea925cd0a.jpg 245w," sizes="100vw" width="600" height="267">

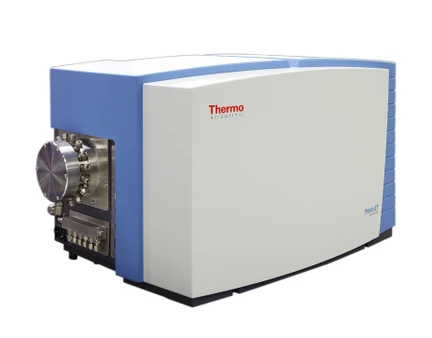

Thermo Scientific Prima PRO Process Mass Spectrometer

Thermo Scientific™ Prima PRO is a highly reliable process analyzer designed for fast, precise multi-stream analysis in industrial processes. It delivers high analytical accuracy, stability, and robust performance in demanding process control applications.

The Thermo Scientific™ Prima PRO Process Mass Spectrometer is a highly reliable and versatile gas analyzer designed for fast, precise, multi-stream gas analysis in industrial process environments. Utilizing scanning magnetic sector technology, the system delivers superior analytical accuracy, long calibration intervals, and strong resistance to contamination. These capabilities make it suitable for demanding process control applications across the chemical, petrochemical, biotechnology, semiconductor, and steel industries.The integrated Rapid Multi-Stream Sampler (RMS) inlet system enables selection from up to 127 process streams, allowing a single analyzer to replace multiple gas chromatographs while maintaining high sampling frequency. The intuitive touchscreen interface, configurable user permissions, and flexible model configurations support efficient operation, regulatory compliance, and scalable deployment across diverse industrial workflows.<h4>Key features</h4><ul><li>High-precision scanning magnetic sector technology for real-time gas analysis</li><li>Rapid Multi-Stream Sampling (RMS) system for up to 127 process streams</li><li>Programmable analytical methods with universal detector capability</li><li>Optional Variable Pressure Inlet (1000 mbar to 0.3 mbar) for flexible integration</li><li>Intuitive touchscreen interface with real-time data visualization</li><li>Advanced security with multi-role user permissions</li><li>Scalable configurations for diverse industrial applications</li></ul><h4>Technical specifications</h4><ul><li>Analysis time: 0.3–1.0 s per gas component</li><li>Analyzer type: Scanning laminated electromagnet, 6 cm radius, 80° deflection</li><li>Area classification: ATEX / IECEx / UKEx Zone 1 and Zone 2 T3</li><li>Detector: Faraday and optional Faraday/SEM dual detector</li><li>Dynamic range: 1 ppm – 100% (application dependent)</li><li>Power: 115/230 VAC</li><li>Precision: Better than 0.1% relative over 24 h</li><li>Resolution: Switchable collector slits; standard resolving powers 60 (1 mm) and 20 (4 mm); optional higher resolutions</li><li>Stability: Better than 10% relative over one month</li><li>User interface:&nbsp;<ul style="list-style-type:circle;"><li>Prima PRO 710:&nbsp;Color touchscreen GUI</li><li>Prima PRO 700:&nbsp;None (remote operation)</li></ul></li><li>Ambient temperature: 12–42 °C</li><li>Mass range: 1–200 amu</li></ul>

Wiley Mass Spectra of Geochemicals, Petrochemicals and Biomarkers

Mass Spectra of Geochemicals, Petrochemicals and Biomarkers features 1,093 high-quality spectra of well-defined compounds, with structures confirmed by methods like NMR and x-ray crystallography—ideal for organic, geo, and petrochemists.

<h4>Identify Key Biomarkers in Oil Exploration with Confidence</h4>The Mass Spectra of Geochemicals, Petrochemicals and Biomarkers library offers 1,093 high-quality spectra of well-defined compounds, ideal for organic, geo-, and petrochemical analysis. Structures were confirmed using techniques such as NMR and x-ray crystallography.Collected by J. W. de Leeuw’s team at NIOZ, the data supports studies on biomacromolecules, lipid diagenesis, and organic sulfur chemistry. Compounds were carefully purified and span classes such as hydrocarbons, terpenes, steroids, and sulfur/oxygen compounds.Highlights:<ul><li>1,093 spectra of &gt;1,080 unique compounds</li><li>Includes degradation products and diverse hydrocarbon types</li><li>Supports most major MS instrument formats</li></ul>Search compound coverage at: <a target="_blank" rel="noopener noreferrer" href="https://www.compoundsearch.com">www.compoundsearch.com</a>
