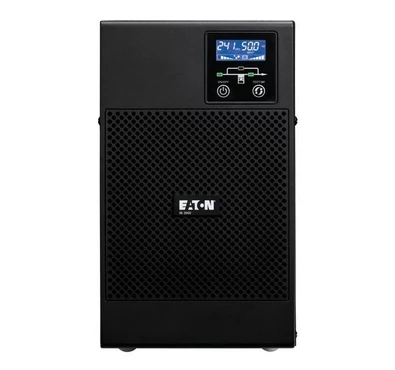

Eaton 9E2000I UPS

Reliable 2000 VA / 1600 W online UPS with double-conversion technology, ensuring continuous power protection, stable output, and easy integration for IT systems and analytical equipment.

The Eaton 9E2000I is a reliable double-conversion (online) UPS designed to provide continuous power protection for critical equipment. With a capacity of 2000 VA / 1600 W, it ensures stable voltage and frequency output, making it ideal for servers, networking devices, and laboratory or analytical instruments.The compact tower design allows easy integration into various environments, while the intuitive LCD interface provides clear status monitoring and control. High efficiency operation (up to 97.5% in eco mode) helps reduce energy consumption and operating costs.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Eaton_9_E2000_I_UPS_3_af8342a083.jpg" alt="Eaton 9E2000I UPS" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Eaton_9_E2000_I_UPS_3_af8342a083.jpg 176w," sizes="100vw" width="1000" height="887"><h3>Key features</h3><ul><li>True online double-conversion topology for maximum protection</li><li>2000 VA / 1600 W output power</li><li>Wide input voltage range reduces battery usage</li><li>LCD display for real-time monitoring (load, battery, alarms)</li><li>Automatic voltage regulation and frequency stabilization</li><li>Cold start capability (startup without mains power)</li><li>Compatible with external battery packs for extended runtime</li><li>Communication ports (USB, RS232) for system integration</li><li>Compact tower form factor</li><li>High efficiency up to 97.5% (eco mode)</li><li>Automatic battery testing and deep discharge protection</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Eaton_9_E2000_I_UPS_4_7c6bf8b875.jpg" alt="Eaton 9E2000I UPS" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Eaton_9_E2000_I_UPS_4_7c6bf8b875.jpg 178w," sizes="100vw" width="1000" height="878"><h3>Technical specifications</h3><ul><li>Power rating: 2000 VA / 1600 W</li><li>Topology: Online (double conversion)</li><li>Input connection: IEC C14</li><li>Output connections: 6 × IEC C13</li><li>Form factor: Tower</li><li>Battery type: Sealed lead-acid (internal)</li><li>Display: LCD</li><li>Communication: USB, RS232</li><li>Input voltage range: 176–300 V (without battery use)</li><li>Input frequency range: 40–70 Hz</li><li>Output voltage: 230 V (configurable 220/230/240 V)</li><li>Output waveform: Pure sine wave</li><li>Runtime: up to ~16 minutes at 50% load (typical)</li><li>Battery configuration: 6 × 12 V / 7 Ah</li><li>Software compatibility: Eaton Intelligent Power Manager, Intelligent Power Protector</li><li>Applications: Servers, IT infrastructure, analytical instruments, laboratory systems</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Eaton_9_E2000_I_UPS_6_47619799ff.jpg" alt="Eaton 9E2000I UPS" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Eaton_9_E2000_I_UPS_6_47619799ff.jpg 179w," sizes="100vw" width="1000" height="872">

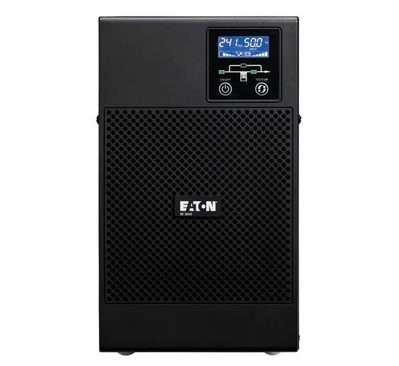

Eaton 9E3000I UPS

Reliable 3000 VA / 2400 W online UPS with double-conversion technology, delivering continuous power protection, stable output, and flexible integration for IT infrastructure and critical equipment.

The Eaton 9E3000I is a reliable double-conversion (online) UPS designed to provide continuous power protection for critical equipment. With a power rating of 3000 VA / 2400 W, it ensures stable voltage and frequency output, making it ideal for servers, networking infrastructure, and laboratory or analytical instruments.The compact tower design allows easy integration into various environments, while the intuitive LCD display provides clear real-time system monitoring.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Eaton_9_E3000_I_UPS_3_21e5358d03.jpg" alt="Eaton 9E3000I UPS" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Eaton_9_E3000_I_UPS_3_21e5358d03.jpg 179w," sizes="100vw" width="1000" height="874"><h3>Key features</h3><ul><li>True online double-conversion topology for maximum protection</li><li>3000 VA / 2400 W output power</li><li>Pure sine wave output</li><li>Wide input voltage range (176–300 V)</li><li>LCD display for real-time monitoring (load, battery, alarms)</li><li>Voltage and frequency stabilization</li><li>Cold start capability (startup without mains power)</li><li>Compatible with external battery packs</li><li>USB, RS232 and communication card slot</li><li>Compatible with Eaton Intelligent Power Manager and Intelligent Power Protector software</li><li>Compact tower design</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Eaton_9_E3000_I_UPS_5_94dcd6f68b.jpg" alt="Eaton 9E3000I UPS" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Eaton_9_E3000_I_UPS_5_94dcd6f68b.jpg 180w," sizes="100vw" width="1000" height="870"><h3>Technical specifications</h3><ul><li>Power rating: 3000 VA / 2400 W</li><li>Topology: Online (double conversion)</li><li>Input: IEC C20</li><li>Outputs: 6 × IEC C13, 1 × IEC C19</li><li>Phase: Single-phase input / output</li><li>Dimensions (W × H × D): 39.9 × 33 × 19 cm</li><li>Weight: 24.2 kg</li><li>Display: LCD</li><li>Communication:<ul><li>USB port (HID compatible)</li><li>Serial port (RS232)</li><li>Communication card slot</li></ul></li><li>Software: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector</li><li>Battery:<ul><li>Maintenance-free sealed lead-acid (VRLA), 6 × 12 V / 9 Ah</li><li>Automatic battery test</li><li>Deep discharge protection</li></ul></li><li>Efficiency: up to 98% (eco mode)</li><li>Noise level: &lt;37 dB (at 1 m)</li><li>Operating temperature: 0 to 40 °C</li><li>Color: Black</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Eaton_9_E3000_I_UPS_2_aecae50e52.jpg" alt="Eaton 9E3000I UPS" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Eaton_9_E3000_I_UPS_2_aecae50e52.jpg 181w," sizes="100vw" width="1000" height="865">

Products from category UPS Backup Power - page 1
