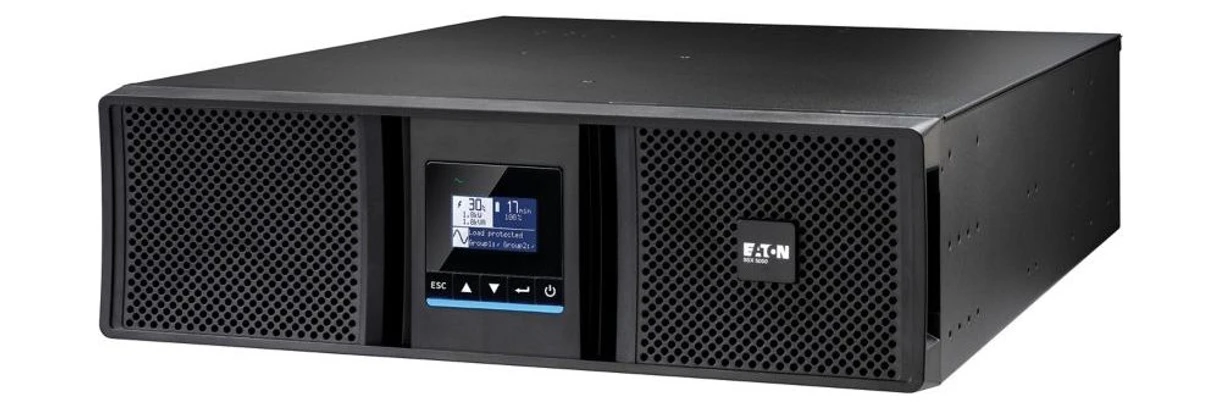

Eaton 9SX 5000i RT3U G2 UPS

The Eaton 9SX 5000i RT3U G2 (9SX5KIRT3UG2) is a modern online double-conversion UPS designed to protect critical equipment in IT, industrial, and laboratory environments. Its rack/tower (3U) design allows flexible installation in server racks or standalone use.

The UPS delivers a stable sine wave output with minimal distortion and precise voltage and frequency regulation. With efficiency up to 96.7%, it significantly reduces operating costs. The internal bypass ensures power continuity in case of failure, while advanced ABM+ battery management extends battery life and optimizes charging cycles.

The unit supports external battery modules (EBMs) to extend runtime and offers comprehensive communication options including USB, RS232, RPO, and dry contacts. A multilingual graphical LCD display ensures easy monitoring and control.

Eaton 9SX 5000i RT3U G2 UPS

Key features

• Online double-conversion UPS
• 5000 VA / 5000 W output (power factor 1.0)
• High efficiency up to 96.7%

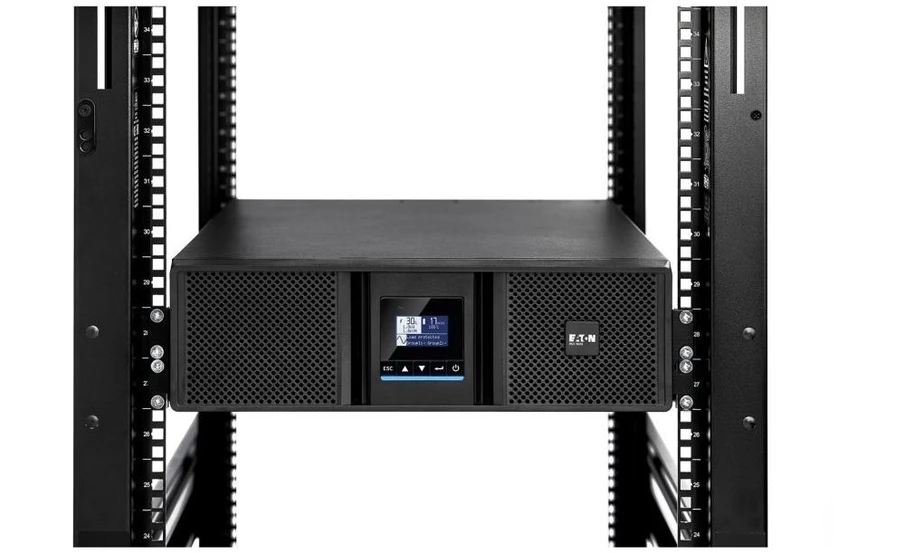

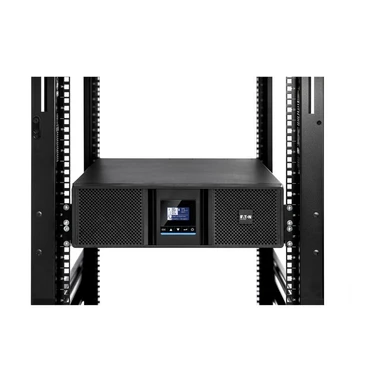

• Rack/tower design (3U, 19")
• Sine wave output with low distortion (≤1%)
• Internal bypass
• Advanced ABM+ battery management
• Expandable with external battery modules (EBM)
• Multilingual graphical LCD display
• Communication: USB, RS232, ROO, dry contacts
• Slot for communication card

Eaton 9SX 5000i RT3U G2 UPS

Technical specifications

General

• Model: 9SX5KIRT3UG2
• Model code: Eaton 9SX 5000i RT3U G2
• Form factor: Rack/tower (3U, 19")
• Color: Black
• Efficiency: up to 96.7%
• Internal bypass: Yes
• Certifications: IEC/EN 62040-1, -2, -3, ENERGY STAR, CE, cULus, UKCA, RCM, KCC, BSMI
• Package contents:
  • UPS
  • (2) cable glands
  • (2) IEC-IEC output cables (1,2 m)
  • USB cable (1,8 m)
  • Cable locking systems
  • Supports for tower mounting
  • Rack-mounting kit with brackets and slides for UPS
  • Safety instructions
  • Quickstart guide

Electrical input

• Input voltage range: 176–276 V (100–276 V with derating)
• Input frequency range: 40–70 Hz
• Nominal frequency: 50/60 Hz
• Input power factor: >0.99

Electrical output

• Power rating: 5000 VA / 5000 W
• Output voltage: 230 V (200/208/220/230/240 V)
• Output power factor: 1.0
• Waveform: Sine wave
• THD (linear load): ≤1%
• Topology: Online / double conversion

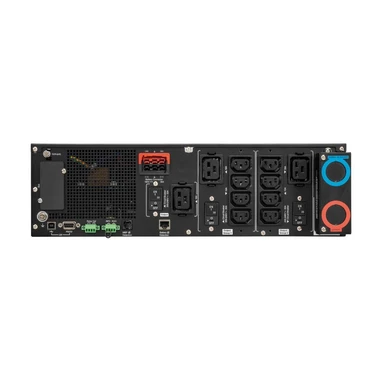

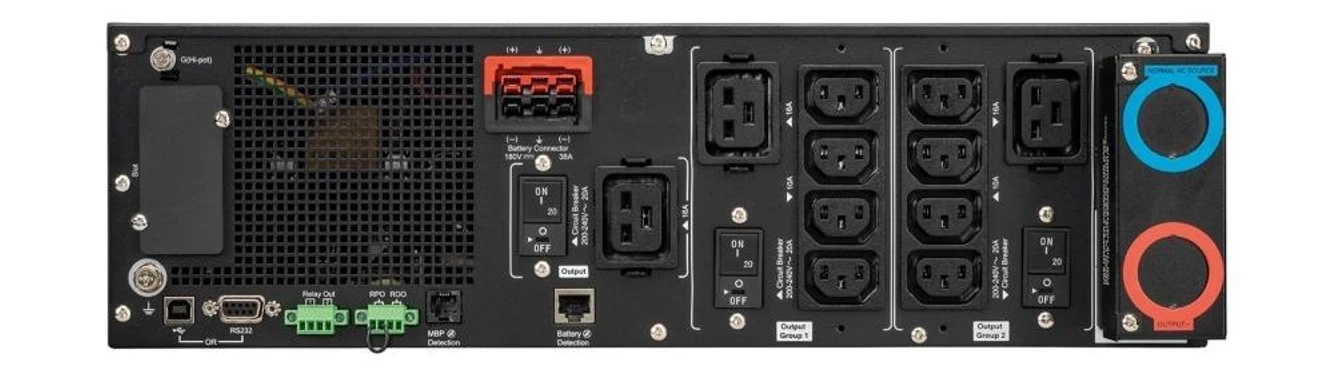

• Receptacles: 8× IEC C13, 3× IEC C19, terminal block

Battery

• Type: Sealed lead-acid (VRLA)
• Quantity: 15 × 12 V / 5 Ah
• Management:
  • ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable)
  • Automatic battery test
  • Deep discharge protection
  • Automatic recognition of external battery units
• Expandability: External battery modules (EBM)
• Replacement: Hot-swappable
• Runtime graph: runtime graph

Communication

• USB: Yes (HID compliant)
• RS232: Yes
• RPO (remote power off): Yes
• ROO (remote on/off): Yes
• Dry contacts: Yes (2 outputs, 1 input)
• Expansion slot: 1
• Software: Eaton Brightlayer

Physical parameters

• Dimensions (D × H × W): 684 × 130 × 440 mm
• Weight: 43.1 kg

Operating conditions

• Noise level: <40 dB
• Temperature: 0–40 °C
• Humidity: 0–95% non-condensing
• Altitude: up to 3000 m
