DataApex Clarity Offline Chromatography Software

Clarity Offline allows users to import previously acquired data and to evaluate and prepare methods in regulated environment.

Clarity Offline allows users to import previously acquired data and to evaluate and prepare methods. This version cannot acquire data, but it can share data or even directly access (through LAN) projects of the <a href="https://lcms.labrulez.com/products/999">Clarity</a> and Clarity Lite software. With Clarity Offline users are able to work with acquired data on additional computers in the lab or at home. The software works with the same files and provides the same outputs (printing and exporting) as Clarity and Clarity Lite.
Clarity Offline is intended for use as additional software that supplements Clarity and Clarity Lite. It can also be used to evaluate data from other manufacturers&#39; CDS.
<blockquote>
Ask for <a href="https://www.dataapex.com/product/clarity-demo">Clarity Demo version</a> which allows you to get your hands on software before purchase
</blockquote>
<h3>Main features</h3>
<ul>
<li>21 CFR Part 11 compliance: Clarity Offline contains all functions (Electronic Signatures, User Accounts, Audit Trail, etc.) for compliance with the 21 CFR Part 11 directive of the FDA. Clarity Offline can be used for evaluation in regulated environments.
</li>
<li>Networked Solution: Clarity Offline can access files of Clarity and Clarity Lite installed on networked computers. This enables evaluation of chromatograms, development of new methods, and printing reports on additional computers in the laboratory.
</li>
<li>Education: An additional field of use is in education. Students can process chromatograms that have been acquired from Clarity connected to a chromatograph using their Clarity Offline license. Thus they do not need a Clarity full license just for data evaluation.
</li>
<li>Data processing and evaluation from other chromatography software: Clarity Offline allows the import of data from other chromatography software using text or AIA import function. This allows the user to process and evaluate chromatograms acquired by other chromatography software.
</li>
<li>Offsite computer: Clarity Offline can be installed on any Windows computer, giving you anytime access to your chromatographic data (USB hardware key is required).
</li>
<li>Language Localizations available: Useful for non-English speakers. At the moment, there are French, German, Russian, Spanish, and Chinese localizations available in a single installation package. Simply switch to your preferred language anytime.
</li>
</ul>
<a href="https://www.dataapex.com/controls">List of supported instruments</a>
<a href="https://www.dataapex.com/product/clarity-std-compatibility">Compatible Windows OS and Hardware</a>
<a href="https://www.dataapex.com/product/clarity-21cfr-compliance">Clarity 21 CFR Part 11 compliance</a>

DataApex SST - System Suitability Test Extension for Clarity

The SST extension serves to monitor the correct function of the chromatography system. The program compares up to 12 selected parameters (e.g., retention time, efficiency, asymmetry of peaks) calculated according to one of three pre-selected methods (USP, EP, JP).

<h3>The SST extension serves to monitor the correct function of the chromatography system.</h3>
The program compares up to 12 selected parameters (e.g., retention time, efficiency, asymmetry of peaks) calculated according to one of three pre-selected methods (USP, EP, JP). These calculated values are either compared to the user&#39;s set limit values for each chromatogram separately or together for the selected series. Deviation of any parameter from the permissible limits is immediately reported and may lead to the termination of the sequence in progress. The SST Extension allows the user to monitor the parameters of individual substances and thus evaluate the reproducibility of the results of the entire chromatography system.
The SST extension is required when using the <a href="https://www.dataapex.com/product/validation-kit">Validation Kit</a>.
<h3>Main features</h3>
<ul>
<li>Measuring: Simultaneous data acquisition from up to four signals (detectors) attached to one chromatograph.
</li>
<li>Parameters: The program compares up to 12 selected parameters (e.g., retention time, efficiency, asymmetry of peaks) calculated according to one of three pre-selected methods (USP, EP, JP).
</li>
<li>Limit values: These calculated values are compared to user set limit values, either for each chromatogram separately or together for the selected series. Deviation of a certain parameter from the permissible limits is immediately reported and may lead to the termination of the sequence in progress.
</li>
<li>Versatility: Even though validation primarily focuses on testing system reliability, it can also be used in many other ways. Validation can be run during measurements, or additionally, using batch processing. Validated data can be automatically saved to a database file for further processing.
</li>
<li>Enhanced sequencing: In connection with a sequence, the SST module can even pause a sequence when a specified value has been exceeded or to perform predefined functions.
</li>
</ul>
<a href="https://gcms.labrulez.com/products/999">Clarity</a> Chromatography Software required

DataApex MS - Mass Spectrometry Extension for Clarity

The Clarity MS Extension is a tool that is used for processing data that has been acquired from selected Mass Spectrometry detectors. Spectral data, together with chromatograms, add a third dimension to analytical data analysis.

<h3>Clarity Extension for processing data that has been acquired from selected Mass Spectrometry detectors</h3>
The Clarity MS Extension is a tool that is used for processing data that has been acquired from selected Mass Spectrometry detectors. Spectral data, together with chromatograms, add a third dimension to analytical data analysis.
The MS Extension expands the capability of <a href="https://lcms.labrulez.com/products/999">Clarity</a> and <a href="https://lcms.labrulez.com/products/1000">Clarity Offline</a> Chromatography software by providing interactive spectral analysis, peak purity analysis, and compound identification that is based on a spectral <a href="https://gcms.labrulez.com/products?category=249">library</a> search. The extension is prepared to function with single quadrupole MS detectors and TOF MS detectors.
All data is saved in a single file; a chromatogram at any m/z value or even only a spectrum can simply be recalled for review after an analysis. MS spectra, acquired using an MS detector, may be interactively selected from a chromatogram signal for visual inspection and comparison. The spectra may also be used for peak purity determinations and component identification through spectral <a href="https://lcms.labrulez.com/products?category=285">libraries</a>.
It is possible to import MS data in AIA (cdf), mzXML, MzML, and mzData formats.
Control modules for selected detectors (see <a href="https://www.dataapex.com/controls">list of control modules</a>) are available in Clarity. Additional control modules for MS detectors can be developed upon request.

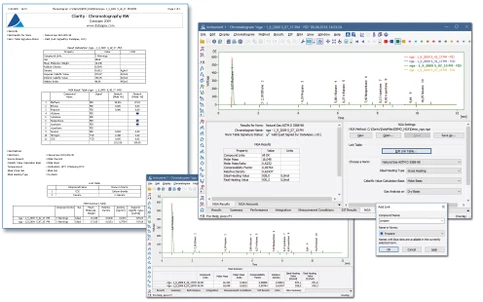

DataApex NGA - Natural Gas Analysis Extension for Clarity

NGA Extension is a software module for Natural Gas and Liquefied Petroleum Gas Data Processing. You no longer need an external tool for gas properties calculations since the Clarity contains the complete workflow.

<h3>Extension for Natural Gas and Liquefied Petroleum Gas Data Processing</h3>
NGA Extension is a software module for Natural Gas and Liquefied Petroleum Gas Data Processing. You no longer need an external tool for gas properties calculations since the <a href="https://gcms.labrulez.com/products/999">Clarity</a> contains the complete workflow of data acquisition, peak calibration, gas properties calculations based on supported norms and reporting. It is possible to perform summary calculations of gas properties from multiple signals and chromatograms.
<h3>Supported norms</h3>
<h4>Natural Gas</h4>
<ul>
<li>ISO 6976-95 Natural gas: Calculation of calorific values, density, relative density and Wobbe index from composition.
</li>
<li>ASTM D 3588-98: Standard Practice for Calculating Heat Value, Compressibility Factor, and Relative Density of Gaseous Fuels.
</li>
<li>GPA 2172-09: Calculation of Gross Heating Value, Relative Density and Compressibility Factor for Natural Gas Mixtures From Compositional Analysis.
</li>
</ul>
<h4>Liquefied Petroleum Gas</h4>
<ul>
<li>ASTM D 2421-02: Standard Practice for Interconversion of Analysis of C5 and Lighter Hydrocarbons to Gas-Volume, Liquid-Volume, or Weight Basis.
</li>
<li>ISO 8973-97 / EN589-04: Standards for calculation methods for density and vapor pressure in liquefied petroleum gases.
</li>
<li>ASTM D 2598-02: Standard Practice for Calculation of Certain Physical Properties of Liquefied Petroleum (LP) Gases from Compositional Analysis.
</li>
</ul>
<h3>Detailed list of calculated gas properties</h3>
<h4>ISO 6976-95</h4>
<ul>
<li>Compression Factor (for real gas only)</li>
<li>Mean Molecular Weight</li>
<li>Relative Density</li>
<li>Density</li>
<li>Superior Calorific Value</li>
<li>Inferior Calorific Value</li>
<li>Wobbe Index</li>
</ul>
<h4>ASTM D 3588-98 and GPA 2172-09</h4>
<ul>
<li>Molar Mass</li>
<li>Molar Mass Ratio</li>
<li>Compressibility Factor</li>
<li>Relative Density</li>
<li>Ideal Heating Value (incl.calculations in BTU - British Thermal Units)</li>
<li>Real Heating Value (incl.calculations in BTU - British Thermal Units)</li>
</ul>
<h4>ASTM D 2421-02 and ASTM D 2598-02</h4>
<ul>
<li>Vapor Pressure</li>
<li>Relative Density</li>
<li>Motor Octane Number</li>
</ul>
<h4>ISO 8973-97 and EN589-04</h4>
<ul>
<li>Absolute Vapour Pressure (for Molar and Mass Percent only)</li>
<li>Gauge Vapour Pressure (for Molar and Mass Percent only)</li>
<li>Octane Number</li>
</ul>

DataApex Clarity DHA (Detailed Hydrocarbon Analysis) Extension

The DHA Extension is a software module for DHA calculations and reporting based on supported standards.

<div><div id=""><div><div><div><div>Extension for Detailed Hydrocarbon Analysis. It allows the determination of individual components in spark ignition engine fuels.</div></div></div></div></div></div><div><div id=""><div><div><div><div><div>DHA Extension brings you the ability to calculate the properties of the samples directly in the chromatography software with the complete workflow of data acquisition, peak calibration, DHA calculations based on supported norms and reporting. These methods are often referred to as PONA, PIONA, O-PONA, etc.Calculations in the DHA Extension currently support the ASTM D-6730 standard and methods developed by Dani Instruments SA.</div></div></div></div></div></div></div><img style="aspect-ratio:1151/879;" src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_2_edfc9ba1f3.jpg" alt="DataApex Clarity DHA (Detailed Hydrocarbon Analysis) Extension" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Data_Apex_Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_2_edfc9ba1f3.jpg 204w," sizes="100vw" width="1151" height="879">You can create an additional custom method based on your own laboratory condititions or we can implement a standard method as part of the DHA extension at your request.If you request to implement another norm in the DHA Extension, please contact us at <a href="mailto:support@dataapex.com">support@dataapex.com</a>.The DHA Extension is optional and it can only be used together with <a target="_blank" rel="noopener noreferrer" href="https://gcms.labrulez.com/products/999">Clarity</a>.Note that for more complex DHA calculations, Clarity DHA Extension should be complemented by specialized software (e.g. Dragon II DHA© - see the <a target="_blank" rel="noopener noreferrer" href="https://www.dataapex.com/downloads/26175/view">D151 datasheet</a> for more details).The DHA Extension is an optional fully integrated addition to <a target="_blank" rel="noopener noreferrer" href="https://gcms.labrulez.com/products/999">Clarity software</a>. It can be ordered as part of a new installation or as an extension to an existing one. There are two variants to this extension:<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_bc1e53cf67.jpg" alt="DataApex Clarity DHA (Detailed Hydrocarbon Analysis) Extension" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Data_Apex_Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_bc1e53cf67.jpg 211w," sizes="100vw" width="1223" height="906"><h5>p/n A33</h5><ul><li>includes general ASTM-D6730 standard method and the possibility to create custom method.</li></ul><h5>p/n A331</h5><ul><li>includes additional methods developed by DANI Instruments S.p.A</li></ul><h3 data-start="49" data-end="78">Norms specification</h3><h4 data-start="80" data-end="102">ASTM D-6730</h4><ul data-start="103" data-end="302"><li data-start="103" data-end="127">Included in p/n A33.</li><li data-start="128" data-end="302">Standard Test Method for Determination of Individual Components in Spark Ignition Engine Fuels by 100-Metre Capillary (with Precolumn) High-Resolution Gas Chromatography.</li></ul><h4 data-start="304" data-end="328">Custom Method</h4><ul data-start="329" data-end="441"><li data-start="329" data-end="353">Included in p/n A33.</li><li data-start="354" data-end="441">Allows you to create a custom method which meets the conditions in your laboratory.</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_3_f5e659a432.jpg" alt="DataApex Clarity DHA (Detailed Hydrocarbon Analysis) Extension" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Data_Apex_Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_3_f5e659a432.jpg 245w," sizes="100vw" width="1233" height="756"><h4>ASTM D-6730 by DANI</h4><ul data-start="478" data-end="578"><li data-start="478" data-end="535">Method by Dani Instruments SA with cryogenic cooling.</li><li data-start="536" data-end="578">Available only at Dani Instruments SA.</li></ul><h4 data-start="580" data-end="619">ASTM D 2421-02 and D 2598-02</h4><ul data-start="620" data-end="720"><li data-start="620" data-end="677">Method by Dani Instruments SA with cryogenic cooling.</li><li data-start="678" data-end="720">Available only at Dani Instruments SA.</li></ul><h4>Extension specification</h4><ul data-start="761" data-end="911"><li data-start="761" data-end="782">Part No.: A33</li><li data-start="783" data-end="911">Related products:<ul data-start="811" data-end="911"><li data-start="811" data-end="832"><a target="_blank" rel="noopener noreferrer" href="https://gcms.labrulez.com/products/999">Clarity</a> (p/n C50)</li><li data-start="835" data-end="864"><a target="_blank" rel="noopener noreferrer" href="https://gcms.labrulez.com/products/1000">Clarity Offline</a> (p/n C59)</li><li data-start="867" data-end="911">GC or AS Control module (p/n A23 or A26)</li></ul></li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_2_d15379bcdf.jpg" alt="DataApex Clarity DHA - Detailed Hydrocarbon Analysis Extension" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Data_Apex_Clarity_DHA_Detailed_Hydrocarbon_Analysis_Extension_2_d15379bcdf.jpg 245w," sizes="100vw" width="1995" height="1182">

DataApex Clarity Chromatography Software

Clarity is a chromatography data software for data acquisition, processing, and instrument control in regulated environment. Clarity is a flexible solution for devices from different vendors, supporting different applications.

Optional control modules provide integrated control of selected instruments such as GCs, LCs, pumps, detectors, autosamplers, etc. Extensions provide functions for specific separation techniques or calculations such as PDA, GPC analysis, Mass spectrometry, or SST. Clarity can run in English, French, German, Russian, Spanish, and Chinese language. Support technicians and developers are close to their users and ready to provide extensive Support from DataApex.
<blockquote>
Ask for <a href="https://www.dataapex.com/product/clarity-demo">Clarity Demo version</a> which allows you to get your hands on software before purchase
</blockquote>
<h3>Main features</h3>
<ul>
<li>Measuring: Simultaneous data acquisition from up to four independent chromatographs, each chromatograph can acquire data from up to 32 detectors.
</li>
<li>Integration: There is an extensive possibility to modify chromatograms. The chromatogram can be changed by entering global parameters or interactively through direct graphic modification of the baseline.
</li>
<li>Overlay: Simultaneously displays a virtually unlimited number of chromatograms and their mathematical modification; for example, mutual deductions or derivations of any order.
</li>
<li>Calibration: Internal and external standard calculation methods, calibration of groups of peaks, and reference peaks method for better identification.
</li>
<li>Wide range of supported instruments: Control modules in Clarity allow users to control various instruments in their lab. See our growing <a href="https://www.dataapex.com/controls">List of supported instruments</a>.
</li>
<li>Extensions completing your workflow: Clarity Extensions integrates your workflow into one application. GPC calculations, PDA data processing, gas or detailed hydrocarbon analyses according to selected norms, and much more.
</li>
<li>Automated measuring support: Sequence tables for any set of samples with or without an autosampler.
</li>
<li>Postrun: Automatically displays, prints, exports, and starts other programs after the completion of a measurement.
</li>
<li>Summary result tables: Displays and prints selected results from all simultaneously displayed chromatograms.
</li>
<li>User settings: User selects parameters for peak display and the specification for axes, including color from an extensive array of color settings. Text labels and lines, either as part of the area or anchored to a chromatogram, may also be inserted.
</li>
<li>Export: Optional exportation of all results, with or without the chromatogram, in various formats, into a file or clipboard.
</li>
<li>Import: Imports chromatograms or mathematical curves, which have been saved in text or AIA formats, from other programs.
</li>
<li>LIMS: Clarity offers connectivity with LIMS, both for sample submission and result output. This can be done via convenient ASCII transfers.
</li>
<li>Method and calibration history: Each chromatogram can easily be displayed under the same conditions as when it was printed, exported, or saved.
</li>
<li>Column performance: Calculations of peaks in terms of symmetry, efficiency, resolution; all by several methods (tangent, moments, etc.).
</li>
<li>Batch: Automatically batch processes, displays, exports, or prints any number of chromatograms.
</li>
<li>User calculations: Users can define custom calculations in the Result and Summary tables. Using the integrated editor, you can create your own columns from original columns and individual mathematical functions.
</li>
<li>User accounts: Sets up access rights and passwords (including their parameters, e.g., minimum length, validity, etc.). Each user can define his or her own appearance of the software.
</li>
<li>Audit trail: Records selected events and operations into a special file. Records selected operations directly into a chromatogram.
</li>
<li>Electronic signature: Each chromatogram can be signed electronically. Signature selection is based on the username or the signature certificate.
</li>
<li>Networked Solution: Clarity chromatography software files can be accessed from networked computers using Clarity Offline software. This enables the offline evaluation of chromatograms, development of new methods, and printing reports. See the <a href="https://gcms.labrulez.com/products/1000">Clarity Offline</a> for more details.
</li>
<li>Language Localizations available: Useful for non-English speakers. At the moment, there are French, German, Russian, Spanish, and Chinese localizations available in a single installation package. Simply switch to your preferred language anytime.
</li>
<li>Competitive approach: The chromatography market offers many specialized HPLC data systems or GC data systems; these are often provided with the purchased instrument. It is usually complicated to integrate such software into the workflow of the laboratory since they do not enable direct control of additional instruments. Compared to other small-scale solutions, Clarity offers a wide range of directly controlled instruments as well as optional Extensions for specific separation techniques. On the other hand, complex solutions with a wide scope of features and scalable design are quite expensive, which is a limiting factor for many customers. Another drawback of the large solutions is their complexity which imposes high demands on users. Compared to this, Clarity represents a scalable medium-ranged solution with a steep learning curve and competitive prices.
</li>
</ul>
<h3>Clarity configurations examples</h3>
<h4>One chromatograph with two detectors</h4>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Clarity_Chromatograficky_Software_Clarity_configurations_examples_One_chromatograph_with_two_detectors_ae482b83b8/DataApex-Clarity-Chromatograficky-Software-Clarity-configurations-examples-One-chromatograph-with-two-detectors.jpg" alt="DataApex Clarity Chromatography Software: Clarity configurations examples - One chromatograph with two detectors.jpg"/>
<ul>
<li>The HPLC measures on two detectors. Clarity will acquire two separate signals sharing a common timebase (synchronized START/STOP). A resulting chromatogram will contain two signals.</li>
</ul>
<h4>Two chromatographs, one with multiple detectors</h4>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Clarity_Chromatograficky_Software_Clarity_configurations_examples_Two_chromatographs_one_with_multiple_detectors_b21dc07faf/DataApex-Clarity-Chromatograficky-Software-Clarity-configurations-examples-Two-chromatographs-one-with-multiple-detectors.jpg" alt="DataApex Clarity Chromatography Software: Clarity configurations examples - Two chromatographs, one with multiple detectors.jpg"/>
<ul>
<li>This example displays a configuration with two chromatography systems (GC + HPLC) where the HPLC system uses multiple detectors. All the detectors attached to the HPLC Instrument will share common timebase (synchronized START/STOP). The GC detector will be independent.</li>
</ul>
<h4>Two chromatographs, one digital control</h4>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Clarity_Chromatograficky_Software_Clarity_configurations_examples_Two_chromatographs_one_digital_control_1bf9cec334/DataApex-Clarity-Chromatograficky-Software-Clarity-configurations-examples-Two-chromatographs-one-digital-control.jpg" alt="DataApex Clarity Chromatography Software: Clarity configurations examples - Two chromatographs, one digital control.jpg"/> This example displays a configuration with two chromatography systems (GC + LC). The GC is connected and controlled via digital interface *, using a GC Control appropriate module.
<h4>Four chromatographs with autosampler each</h4>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Data_Apex_Clarity_Chromatograficky_Software_Clarity_configurations_examples_Four_chromatographs_with_autosampler_each_945873d808/DataApex-Clarity-Chromatograficky-Software-Clarity-configurations-examples-Four-chromatographs-with-autosampler-each.jpg" alt="DataApex Clarity Chromatography Software: Clarity configurations examples - Four chromatographs with autosampler each.jpg"/>
<ul>
<li>This example displays a configuration with two chromatography systems (GC + LC). The GC is connected and controlled via digital interface *, using a GC Control appropriate module.</li>
</ul>
<a href="https://www.dataapex.com/controls">List of supported instruments</a>
<a href="https://www.dataapex.com/product/clarity-std-compatibility">Compatible Windows OS and Hardware</a>
<a href="https://www.dataapex.com/product/clarity-21cfr-compliance">Clarity 21 CFR Part 11 compliance</a>
