LECO PEGASUS BT 4D GC×GC-TOFMS

The LECO PEGASUS BT 4D GC×GC-TOFMS is a high-performance benchtop system that combines comprehensive two-dimensional gas chromatography (GC×GC) with time-of-flight mass spectrometry (TOFMS) to deliver unmatched separation power, sensitivity, and confidence in compound identification. Designed for laboratories facing highly complex samples, the PEGASUS BT 4D enables qualitative and quantitative analysis in a single run while maximizing productivity and data quality.

By coupling GC×GC separation with fast TOFMS acquisition, the system dramatically increases chromatographic peak capacity and resolves co-eluting compounds that are difficult or impossible to distinguish by conventional 1D GC-MS. Enhanced signal-to-noise ratios translate into lower detection limits, improved linearity, and more reliable quantification—even in challenging matrices.

What GC×GC Brings to Your Analysis

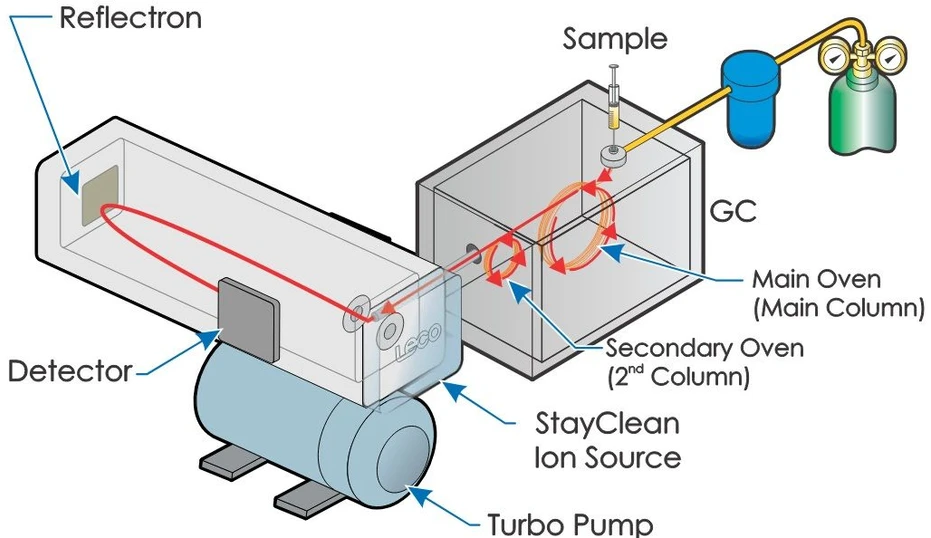

GC×GC modulation refocuses and reinjects analytes from the first column into a second column with a different stationary phase, providing structured chromatograms that improve interpretability of complex data. This approach improves both separation efficiency and interpretability of results, allowing you to identify more compounds with greater confidence and consistency.

LECO PEGASUS BT 4D GC×GC-TOFMS

Confident Identification and Quantification

The PEGASUS BT 4D excels in both comprehensive screening and targeted applications. Spectral deconvolution combined with high-speed TOFMS acquisition reveals analytes present in complex matrices, while GC×GC separation minimizes matrix interferences for superior quantitative performance. What was once a marginal library match in GC-MS becomes a confident identification in GC×GC-TOFMS.

LECO PEGASUS BT 4D GC×GC-TOFMS: Quantitative analysis using the Pegasus BT 4DLECO PEGASUS BT 4D GC×GC-TOFMS: Qualitative analysis using the Pegasus BT 4D

Robust Design for High-Throughput Labs

Equipped with LECO’s proven StayClean® ion source, the PEGASUS BT 4D minimizes routine maintenance and downtime, even when analyzing dirty or complex samples. Integrated with ChromaTOF® software, the system provides seamless instrument control, automated data processing, and powerful qualitative and quantitative tools within a single platform.

LECO - PEGASUS BT 4D GCxGC-TOFMS.jpg

Key Benefits

• Exceptional chromatographic resolution and peak capacity with GC×GC
• Enhanced sensitivity and lower detection limits through modulation-based signal focusing
• High-speed TOFMS acquisition for accurate deconvolution of narrow GC×GC peaks
• Reliable identification and quantification of analytes
• Reduced maintenance with the StayClean® ion source
• Fully integrated ChromaTOF® software for acquisition, processing, and reporting

Applications

The LECO PEGASUS BT 4D GC×GC-TOFMS is ideally suited for demanding applications across environmental analysis, petrochemical and energy research, food and flavor/fragrance analysis, forensics, life sciences, and metabolomics—anywhere complex mixtures require maximum separation power and analytical confidence.

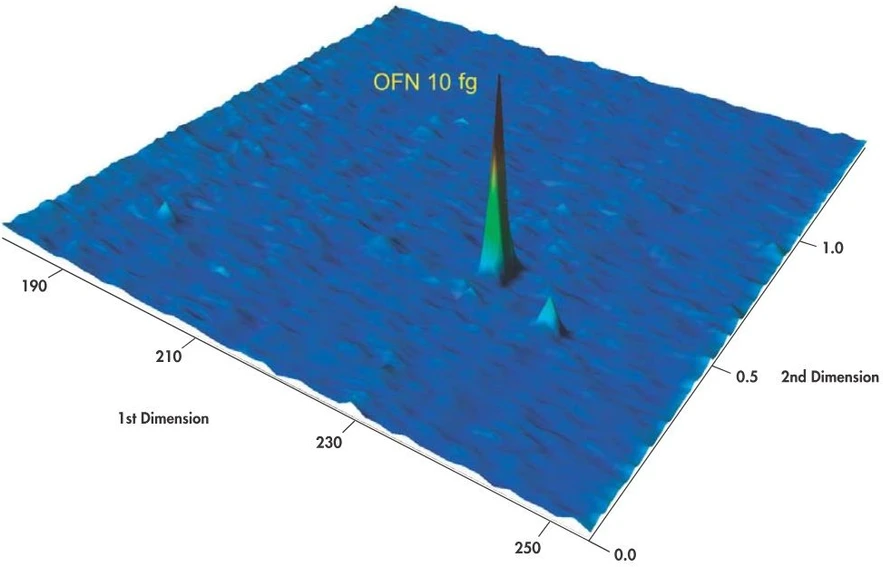

LECO PEGASUS BT 4D GCxGC-TOFMS: Excellent SensitivityWith the PEGASUS BT 4D, you can predict, quantify, and identify more compounds with confidence, turning complex data into clear, actionable results.LECO PEGASUS BT 4D GCxGC-TOFMS: Identify MORE with confidence/non-target analysis
