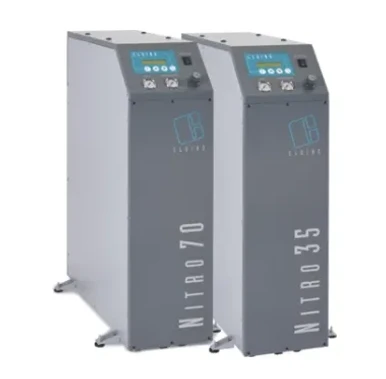

Organomation NITRO Nitrogen Generator

The Organomation NITRO (NiGen Nitro 35 / 70) is a high-performance nitrogen generator based on PSA technology, designed for applications requiring flow rates up to 70 L/min and purity up to 99.99%.

It is available in two models:

• NITRO 35 – up to 35 L/min
• NITRO 70 – up to 70 L/min

The system delivers a dew point below -50 °C and hydrocarbon levels below 0.01 ppm, making it suitable for demanding applications such as LC/MS.

An integrated 24 L internal tank ensures stable nitrogen supply and reduces downtime. The unit features a touchscreen display, supports remote access via Claind4You, and enables full system integration using MODBUS, MQTT, and HTTPS protocols.

Key Features

• Two models: 35 and 70 L/min
• Nitrogen purity up to 99.99%
• Dew point < -50 °C
• Hydrocarbon content < 0.01 ppm
• PSA (Pressure Swing Adsorption) technology
• 24 L internal storage tank
• Touchscreen display with monitoring and alerts
• Remote control via Claind4You
• Integration via MODBUS, MQTT, HTTPS
• Automatic operation with leak detection
• Mobile design with wheels
• Reliable continuous operation

Available Models

NITRO 35

• Flow rate: up to 35 L/min
• Weight: 75 kg

NITRO 70

• Flow rate: up to 70 L/min
• Weight: 90 kg

Standard Features

• PSA nitrogen generator (Claind technology)
• Touchscreen display
• Automatic operation with alarms
• Alarm logging and diagnostics
• 24 L internal tank
• Remote access (Claind4You)
• Communication protocols (MODBUS, MQTT, HTTPS)
• Wheels for mobility

Technical Specifications

General

• Model: NiGen Nitro 35 / 70
• Technology: PSA
• Purity: up to 99.99%
• Dew point: < -50 °C
• Hydrocarbons: < 0.01 ppm
• Output pressure: 0–6.5 bar (0–94 psi)

Flow Rate

• NITRO 35: up to 35 L/min
• NITRO 70: up to 70 L/min

Air Input Requirements

• Particles: ≤ 0.01 µm
• Oil: ≤ 0.01 mg/m³
• Moisture: ≤ 3 °C dew point
• Air flow:
  • 35: up to 90 L/min
  • 70: up to 170 L/min

Electrical

• 115 / 230 V
• 50–60 Hz
• Power consumption: 200 W

Operating Conditions

• Temperature: 5–40 °C
• Humidity: 5–80%
• Max altitude: 2000 m

Dimensions

• 92 × 26.5 × 75 cm

Weight

• NITRO 35: 75 kg
• NITRO 70: 90 kg

Communication

• MODBUS (TCP), MQTT, HTTPS
• Wi-Fi connectivity

Protection

• IP20

Warranty

• 2 years

Accessories

• 100 L reservoir (air or nitrogen storage)
• Installation kit for LC/MS (A200)
• Dual Purity module (99.999% for LC-MS collision cell)
