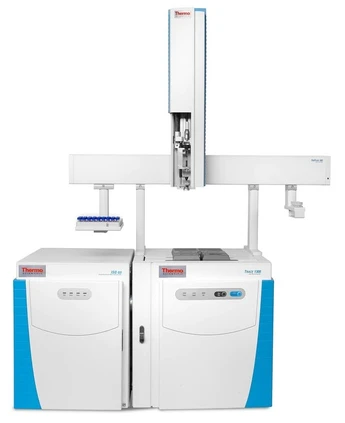

Thermo Scientific™ TriPlus™ 100 LS Liquid Autosampler

Move to the simplicity of this X-Y-Z robotic autosampler. Able to accommodate most samples, the Thermo Scientific™ TriPlus™ 100 LS liquid autosampler completely and reliably automates liquid injections, from nanovolume to large sample volumes. The precise movement control of the autosampler allows correct sampling and injection optimization even for highly viscous samples or very volatile solvents. Based on the robust and proven technology of the TriPlus RSH robotic autosampler, the TriPlus 100 LS increases liquid sample handling automation and throughput with ease.

Labor saving

• Extended unattended operations made possible by the wide sample storage and large solvent capacities
• High-Throughput Configuration is possible through a dual GC or GCMS set-up, with Double Pro or Confirmation injection mode
• Rapid Mode for increased sample throughput starts the syringe washing cycle during the GC cooling phase

Versatilty

• Select from different pre-optimized liquid injection modes for a wide range of applications
• Use with a full range of performance-enhancing accessories for liquid sample handling of the Thermo Scientific™ TriPlus™ RSH and RSH SMART platforms for additional simplicity and dependability
• Syringe Cleaning options allow to install multiple solvent stations and wxpand solvent and waste volumes
• Add module options including an agitator, vortexer, liquid-cooled tray holder, and Temperature-Controlled Drawer

Easy operations

• Eight fully customizable method-specific preset menus for different injection modes are available through the data systems to easily allow the highest flexibility in liquid samples injections
• Optional hand-held control device with 4 keys, round knob, and graphical LCD display for local control
• Thermo Scientific chromatography data systems integrated with Virtual Terminal software to completely mimic the physical controller

Thermo Scientific™ TriPlus™ 100 LS Liquid Autosampler

Specifications

• Type: TriPlus 100 LS Liquid Autosampler
• Sample Capacity:
  • Up to 4608 well plates
  • Up to 840 0.5/0.7 mL vials
  • Up to 648 2 mL sample vials
  • Up to 180 10 mL or 20 mL vials
• Injection Mode: 8 Fully Customizable Method-Specific Injection Mode Presets
• Injection Speed: Selectable from 0.1 µL/sec up to 900 µL/sec and fully programmable in three different steps, also dependent upon the volume of the installed syringe
• Injection Volume: 0.1 to 100.0 μL
• Description: Robotic XYZ Liquid Autosampler for GC and GCMS
• Tool Exchange: No tool exchange capability
• For Use With (Equipment): Compatible with standard and SMART syringes
• Quantity: Each
• Unit Size: Each
