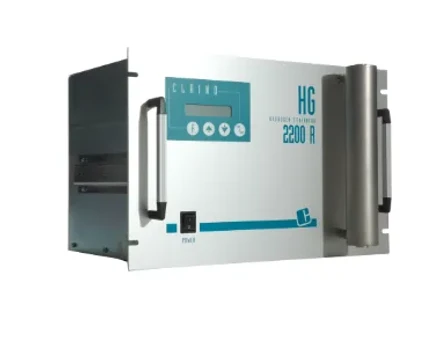

Organomation HG 2200 R Hydrogen Generator

The Organomation HG 2200 R is a compact hydrogen generator designed for THC and emission monitoring analyzers. It delivers flow rates up to 200 mL/min with hydrogen purity greater than 99.999%, and oxygen content below 0.1 ppm when used with additional purifiers.

The unit allows adjustable outlet pressure from 1 to 4 bar (up to 6 bar on demand) and features a removable external water tank for easy maintenance. An automatic water loading pump supports continuous operation.

Key Features

• Hydrogen flow up to 200 mL/min
• Purity >99.999% (UHP)
• O₂ <0.1 ppm with additional purifier
• Adjustable outlet pressure: 1–4 bar (up to 6 bar)
• Removable water tank for easy cleaning
• Optional continuous water supply (pump)
• Low noise level <46 dB
• Compact benchtop design
• Simple operation and maintenance

Standard Features

• UHP hydrogen generation (>99.999%)
• Pressure control via keyboard
• Removable water tank
• External water supply capability
• Integrated dryer with molecular sieve

Technical Specifications

General

• Model: HG 2200 R
• Flow rate: 200 mL/min
• Purity: >99.999%
• Oxygen content: <0.1 ppm (with purifier)

Output Pressure

• Standard: 1–4 bar
• Maximum: 6 bar (on request)

Electrical

• 115/230 V, 50–60 Hz
• Power rating: 100 VA

Operating Conditions

• Temperature: 5–40 °C
• Noise level: <46 dB

Water Requirements

• Demineralized water ≤ 5 µS/cm (~0.2 MΩ·cm)

Consumables

• Dryer with molecular sieve

Dimensions & Weight

• Dimensions: 31 × 48 × 38 cm
• Weight: 20 kg

Warranty

• 1 year

Accessories / Options

• Additional purifiers for ultra-low O₂
• Water refill pump
