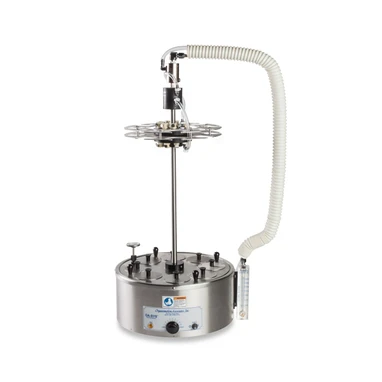

Organomation S-EVAP-RB Solvent Evaporator

S-EVAP-RB 8 Position 250ml

The mechanical thermostat 8 position S-EVAP-RB large scale solvent evaporator (Cat# 12060) can evaporate up to 8 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position.  Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).

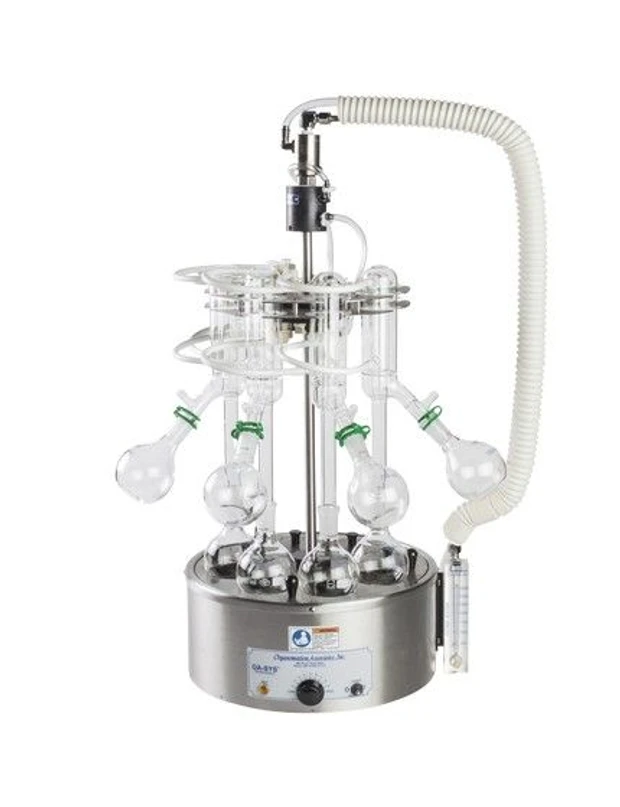

Organomation: S-EVAP-RB Solvent Evaporator - 8 position

S-EVAP-RB 10 Position 250ml

The digitally controlled 10 position S-EVAP-RB large scale solvent evaporator (Cat# 12090) can evaporate up to 10 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position.  Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).

Organomation: S-EVAP-RB Solvent Evaporator - 10 position

Standard features (S-EVAP-RB 8 Position and S-EVAP-RB 10 Position)

• Mechanical thermostat with temperature control +/- 2°C / Digital electronic temperature control +/- 2°C (S-EVAP-RB 8 Position / S-EVAP-RB 10 Position)
• Manifold for holding solvent recovery condensers
• Flow meter and rigid supply tube for condenser water supply
• Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
• Parallel water supply/drain manifolds with quick disconnect tube fittings
• Bath temperature range 30°C - 100°C
• Evaporate solvents with boiling points up to 65°C

Advantages (S-EVAP-RB 8 Position and S-EVAP-RB 10 Position)

• Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
• Conserves valuable bench space: all samples are arranged in a circle
• Easy sample access: the instrument rotates allowing all samples to be accessed from the front
• Fewer connections: one water supply line in, one drain line out

OPTIONS (Add to main Cat# when purchasing)

S-EVAP-RB 8 Position

• Positive pressure type Z purged bath (Option Code -Z), Cat# 12060-Z
• 240V wiring and plug (Option Code -2), Cat# 12060-2
• Nitrogen purge manifold (Option Code -N), Cat# 12060-N

S-EVAP-RB 10 Position

• Positive pressure type Z purged bath (Option Code -Z), Cat# 12090-Z
• 240V wiring and plug (Option Code -2), Cat# 12090-2
• Nitrogen purge manifold (Option Code -N), Cat# 12090-N

ACCESSORIES (S-EVAP-RB 8 Position and S-EVAP-RB 10 Position)

• 250 ml individual collection glassware set Cat# GS2162
• 125 ml individual collection glassware set Cat# GS2161
• Adapter rings for 3.0 in hole  Cat# XA2286
• Cover for 3.0 in disk holes Cat# XA2282
• Cover for 2.125 in disk holes Cat# XA3283
• Boiling grids Cat# GA2245
• Chiller

Specification

Model Options

• S-EVAP-RB 8-Position (250 mL)
  • Catalog Number: 12060
  • Number of Sample Positions: 8
  • Bath Model: 9125
  • Power: 900 W
  • Temperature Control: Mechanical thermostat
  • Bath Size (Inside): 12 × 4.5 in (30.5 × 11.4 cm)
  • System Dimensions: 24 × 22 × 30 in (61 × 56 × 76 cm)
• S-EVAP-RB 10-Position (250 mL)
  • Catalog Number: 12090
  • Number of Sample Positions: 10
  • Bath Model: 16165
  • Power: 1600 W
  • Temperature Control: Digital controller with LED display
  • Bath Size (Inside): 16 × 4.5 in (40.6 × 11.4 cm)
  • System Dimensions: 26 × 24 × 30 in (66 × 61 × 76 cm)

Shared Features

• Application: Round-bottom flasks with shallow bath
• Sample Flask Type: Round-bottom with flat base, 250 mL
• Required Glassware: GS2162
• Condenser Type: Inverted Hopkins with 24/40 sidearm
• Collection Flask Type: 250 mL round with flat bottom
• Heating Medium: Water
• Bath Temperature Range: 30–100 °C
• Temperature Accuracy: ±2 °C
• Bath Outside Dimensions (W × D × H):
  • Model 9125: 18 × 16 × 7 in (46 × 41 × 18 cm)
  • Model 16165: 24 × 19 × 6 in (61 × 48 × 15 cm)
