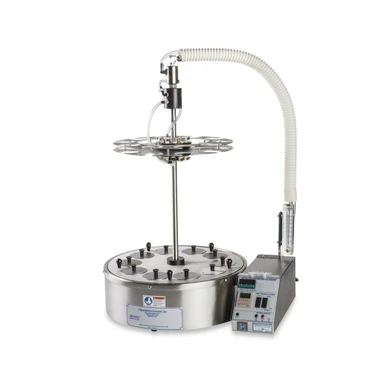

Organomation S-EVAP+ Vacuum Evaporator

The S-EVAP+ is an efficient way to concentrate multiple large samples at once. It is designed to be a smarter, higher capacity alternative to rotary evaporation. Instead of only being able to evaporate 1 sample at a time like in a rotary unit, the S-EVAP+ allows you to evaporate up to 10 samples at once, for a faster, more efficient process. The S-EVAP+ takes all the benefits of the original S-EVAP-RB evaporator including the digital control box and combines it with vacuum technology to accommodate a wider range of solvents with high boiling points.

Suitable for all solvents with a boiling point below 115 °C.

The number of samples you're able to evaporate at once depends on your flask size and solvent volume. Below is a general guide for reference:

• 250 mL flasks (125 mL of solvent or less) - up to 10 sample positions (Cat# 12090-V)
• 500 mL flasks (250 mL of solvent or less) - up to 8 sample positions (Cat# 12008-V)
• 1 L flasks (500 mL of solvent or less) - up to 5 sample positions (Cat# 12007-V)
• 2 L flasks (1 L of solvent or less) - up to 4 sample positions (Cat# 12004-V)

Standard features

• Manifold for holding solvent recovery condensers
• Flow meter and rigid supply tube for condenser water supply
• Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
• Parallel water supply/drain manifolds with quick disconnect tube fittings
• Bath temperature range 30°C - 100°C
• Evaporate solvents with boiling points up to 115°C
• Digital electronic temperature control +/- 2°C

Advantages

• Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
• Efficiency: evaporate up to 10 samples at once compared to just 1 with a rotary evaporator
• Conserves valuable bench space: all samples are arranged in a circle for small footprint
• Easy sample access: the instrument rotates allowing all samples to be accessed from the front
• Fewer connections: one water supply line in, one drain line out

OPTIONS (Add to main Cat# when purchasing)

• Positive pressure type Z purged bath (Option Code -Z)
• 240V wiring and plug (Option Code -2)
• Nitrogen purge manifold (Option Code -N)

ACCESSORIES

• 125 mL individual collection glassware set (Cat# GS2161)
• 250 ml individual collection glassware set (Cat# GS2162)
• 500 mL individual collection glassware set (Cat# GS2163)
• 1 L individual collection glassware set (Cat# GS2164)
• 2 L individual collection glassware set (Cat# GS2165)
• Adapter kit for use with smaller sample flasks
• Boiling grids (Cat# GA2245)
• Chiller

Specification

Available Models:

• The 10-position model (Catalog No. 12090-V) is ideal for high-throughput labs and accommodates 250 mL flasks using GS2162 glassware.
• The 8-position model (Catalog No. 12008-V) supports 500 mL flasks and uses GS2163 glassware.
• For mid-sized volumes, the 5-position model (Catalog No. 12007-V) is designed for 1 L flasks with GS2164 glassware.
• The 4-position model (Catalog No. 12004-V) is perfect for larger samples, handling 2 L flasks with GS2165 glassware.

Glassware & Configuration:

• Sample Flask Type: Round bottom with flat base
• Condenser Type: Inverted Hopkins with 24/40 sidearm
• Collection Flask Type: Matches the sample flask size (250 mL to 2 L)
• Individual Solvent Collection: Yes

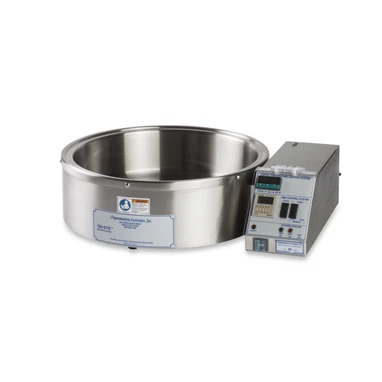

Water Bath Specifications:

• Bath Model:
  • 120V systems: Model 16165
  • 240V systems: Model 14165
• Heating Medium: Water
• Inside Dimensions (Diameter × Depth): 16 × 4.5 in (40.6 × 11.4 cm)
• Outside Dimensions (W × D × H): 24 × 19 × 6 in (61 × 48 × 15 cm)
• Power Consumption:
  • 1600 W for 120V models
  • 1400 W for 240V models
• Temperature Range: 30–100 °C
• Controller Type: Digital electronic with LED display
• Temperature Accuracy: ±2 °C

System Dimensions (All Models): 26 × 24 × 30 in (66 × 61 × 76 cm)
