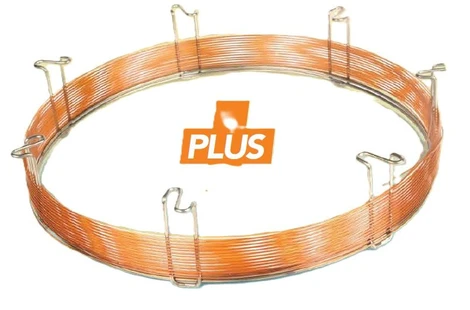

Phenomenex Zebron ZB-WAXplus GC Columns

Zebron ZB-WAXPLUS is 100 % aqueous stable, excellent for aqueous samples

<h4><strong>100% Aqueous Stability for Polar Compounds</strong></h4><h5><strong>Enhanced Aqueous Stability</strong></h5><ul><li>100 % aqueous stable, excellent for aqueous samples</li><li>Extremely inert for acidic compounds</li><li>Enhanced selectivity for low boiling solvents</li><li>High retention of alcohols and chlorinated solvents</li><li>Increased efficiency at 20 °C</li></ul><h5><strong>No Way!</strong></h5><p>A specialized bonding procedure makes ZB-WAXplus columns exceptionally stable to replicate injections of water-based matrices, while maintaining the selectivity that makes them the scientist’s choice for highly polar compounds.</p><h4><strong>WAX columns from different manufacturers are not always created equal!</strong></h4><p>As part of the Zebron PLUS GC column family, ZB-WAXPLUS is manufactured using improved technologies that reflect our attention to detail every aspect of a ZB-WAXPLUS column’s anatomy is meticulously engineered and individually tested for unprecedented performance.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_WA_Xplus_WAX_columns_from_different_manufacturers_are_not_always_created_equal_0502f6d8e4.jpg" alt="Phenomenex: ZebronWAXplus - WAX columns from different manufacturers are not always created equal" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_WA_Xplus_WAX_columns_from_different_manufacturers_are_not_always_created_equal_0502f6d8e4.jpg 224w," sizes="100vw" width="1301" height="904"></p><h4><strong>Water Reproducibility of ZB-WAXPLUS</strong></h4><p>Historically, polyethylene glycol (PEG) phases have been unstable with aqueous samples such as beverages or glycols, resulting in poor reproducibility and decreased lifetime. The ZB-WAXplus bonding procedure results in exceptional stability to repeated injections of aqueous matrices.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_WA_Xplus_Reproducibility_and_Stability_Test_e0f47777a3.jpg" alt="Phenomenex: ZebronWAXplus - Reproducibility and Stability Test" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_WA_Xplus_Reproducibility_and_Stability_Test_e0f47777a3.jpg 245w," sizes="100vw" width="1437" height="818"></p><p>ZB-WAXPLUS provides optimal selectivity for many aqueous soluble compounds such as those found in alcoholic beverages or glycol samples. The ZB WAXPLUS bonding process results in exceptional stability to repeated injections of aqueous matrices like whiskey. Multiple or routine water injections will not alter the efficiency or polarity of the phase over time.</p><h4><strong>Recommended Use</strong></h4><ul><li>Enhanced selectivity for low boiling solvents; high retention of alcohols and chlorinated solvents and extremely inert for acidic compounds</li></ul><h4><strong>Recommended Applications</strong></h4><ul><li>Alcohols</li><li>Aldehydes</li><li>Aromatics</li><li>Essential Oils</li><li>Flavors &amp; Fragrances</li><li>Free Fatty Acids</li><li>Glycols</li><li>OVIs</li><li>Pharmaceuticals</li><li>Solvents / Residual Solvents</li><li>Styrene</li><li>Xylene Isomers</li></ul><h5><strong>Upgrade to Zebron from any 100 % polyethylene glycol phase:</strong></h5><p><strong>Agilent®</strong></p><ul><li>DB®-WAX</li><li>CAM</li><li>HP-20M</li><li>Carbowax 20M</li><li>CP-Wax 52 CB</li></ul><p><strong>Restek®</strong></p><ul><li>Stabilwax®</li></ul><p><strong>SGE®</strong></p><ul><li>BP20</li></ul><p><strong>Supelco®</strong></p><ul><li>SUPELCOWAX®10</li></ul><h3><strong>Phenomenex Zebron PLUS GC Columns</strong></h3><h4><strong>What’s in the Zebron™ PLUS?</strong></h4><ul><li>Active sites on a GC column’s surface can result in analyte adsorption and degradation, which negatively affect peak shape and response.</li><li>To reduce potential surface activity, <strong>Zebron PLUS phases</strong> (ZB-1plus, ZB-5plus, ZB-5MSplus, and ZB-624plus) are designed with a rigorous fused silica deactivation process that improves inertness and peak shapes for troublesome compounds</li><li>Zebron ZB-WAX<sub>PLUS</sub> is specially designed for <strong>100% aqueous stability</strong>, <strong>enhanced resolution</strong> and <strong>better reproducibility</strong>.</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_PLUS_GC_Column_phase_522f5f8817.jpg" alt="Phenomenex: Zebron PLUS GC Column phase" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_PLUS_GC_Column_phase_522f5f8817.jpg 245w," sizes="100vw" width="1191" height="454"></p>

Phenomenex Zebron ZB-50 GC Columns

Zebron ZB-50 is a high polarity column with temperature limits up to 340 ˚C allows high temperature bake out to remove contaminants

<p><strong>Robust Results, Rugged Performance</strong></p><ul><li>High polarity column with temperature limits up to 340 ˚C allows high temperature bake out to remove contaminants</li><li>Excellent inertness to minimize analyte adsorption, improve efficiency, and reproducibility</li><li>More rugged (longer column life) than other polar phases</li><li>Excellent for trace analysis with bleed-sensitive detectors</li><li>Great for drug screening and environmental compounds</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_ZB_5_8ee06754ca.webp" alt="Phenomenex: Zebron ZB-50" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_ZB_5_8ee06754ca.webp 245w," sizes="100vw" width="500" height="150"></p><h5><strong>Recommended Use</strong></h5><ul><li>Antidepressants, Aroclors, Cholesterols, Drugs of Abuse, EPA Methods (508, 608, 8081, 8141, 8151), Glycols, Pesticides/Herbicides, Steroids, Triglycerides</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_ZB_50_e629cb3dd9.jpg" alt="Phenomenex: Zebron ZB-50" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_ZB_50_e629cb3dd9.jpg 162w," sizes="100vw" width="714" height="689"></p><p><strong>Upgrade to Zebron from any 50% phenyl / 50% dimethylpolysiloxane phase</strong></p><h5><strong>Agilent®</strong></h5><ul><li>DB®-17</li><li>DB-17ht</li><li>DB-17ms</li><li>DB-17 EVDX</li></ul><h5><strong>Restek®</strong></h5><ul><li>Rtx®-50</li></ul><h5><strong>SGE®</strong></h5><ul><li>BPX50</li></ul><h5><strong>Supelco®</strong></h5><ul><li>SP®-2250</li><li>SPB®-17</li><li>SPB-50</li></ul><h5><strong>Zebron GC Column Benefits</strong></h5><p>&nbsp;&nbsp;&nbsp; <img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_GC_Column_Benefits_de6be151ef.jpg" alt="Phenomenex: Zebron GC Column Benefits" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_GC_Column_Benefits_de6be151ef.jpg 245w," sizes="100vw" width="1297" height="742"></p>

Phenomenex Zebron ZB-WAX GC Columns

Zebron ZB-WAX is a bonded, solvent rinsable phase excellent for separating polar complex mixtures

<p><strong>PEG Versatility for Solvents, Acids, and Amines</strong></p><ul><li>Bonded, solvent rinsable phase excellent for separating polar complex mixtures</li><li>GC-MS Certified low bleed levels</li><li>Low activity for amines</li><li>Excellent separations of polar complex mixtures; widely used for profiling and “fingerprinting”</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_ZB_WAX_85cadc4b26.webp" alt="Phenomenex: Zebron ZB-WAX" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_ZB_WAX_85cadc4b26.webp 245w," sizes="100vw" width="500" height="150"></p><h5><strong>Recommended Use</strong></h5><ul><li>Alcohols, Aldehydes, Aromatics, Basic Compounds, Essential Oils, Flavors &amp; Fragrances, Glycols, Pharmaceuticals, Solvents, Styrene, Xylene Isomers</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_ZB_WAX_36e9d3a317.jpg" alt="Phenomenex: Zebron ZB-WAX" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_ZB_WAX_36e9d3a317.jpg 151w," sizes="100vw" width="629" height="648"></p><p><strong>Upgrade to Zebron from any polyethylene glycol phase:</strong></p><h5><strong>Agilent®</strong></h5><ul><li>DB®-WAXetr</li><li>HP-INNOWax</li><li>CP-Wax 57 CB</li></ul><h5><strong>Restek®</strong></h5><ul><li>Rtx®-WAX</li><li>Famewax</li><li>Stabilwax®-DB</li></ul><h5><strong>SGE®</strong></h5><ul><li>SolGel-WAX</li></ul><p><strong>Supelco®</strong></p><ul><li>Met-Wax</li><li>Omegawax</li></ul>

Phenomenex Zebron ZB-FFAP GC Columns

Zebron ZB-FFAP - Popular choice for food industry method development

<p><strong>Improved Resolution for Free Fatty Acids</strong></p><ul><li>Popular choice for food industry method development</li><li>High polarity column with excellent thermal and chemical stability</li><li>Improve peak shape for underivatized acids, organic acids, free fatty acids, and alcohols</li><li>Bonded, solvent rinsable nitroterephthalic acid modified polyethylene glycolphase</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_ZB_WAX_85cadc4b26.webp" alt="Phenomenex: Zebron ZB-FFAP" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_ZB_WAX_85cadc4b26.webp 245w," sizes="100vw" width="500" height="150"></p><h5><strong>Recommended Applications</strong></h5><ul><li>Acrylates, Alcohols, Aldehydes, Free Fatty Acids, Ketones, Organic Acids, Phenols, Volatile Free Acids</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Zebron_ZB_FFAP_131d038bab.jpg" alt="Phenomenex: Zebron ZB-FFAP." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Zebron_ZB_FFAP_131d038bab.jpg 164w," sizes="100vw" width="670" height="636"></p><p><strong>Upgrade to Zebron from any nitroterephthalic acid modified polyethylene glycol phase:</strong></p><h5><strong>Agilent®</strong></h5><ul><li>DB®-FFAP</li><li>HP-FFAP</li><li>CP-Wax 58 FFAP CB</li><li>CP-FFAP CB</li></ul><h5><strong>Restek®</strong></h5><ul><li>Stabilwax®-DA</li></ul><h5><strong>SGE®</strong></h5><ul><li>BP21</li></ul><h5><strong>Supelco®</strong></h5><ul><li>Nukol</li><li>SPB®-1000</li></ul><h5><strong>OV®</strong></h5><ul><li>OV-351</li></ul>

Products from category Polar GC Columns distributed by Phenomenex - page 1
