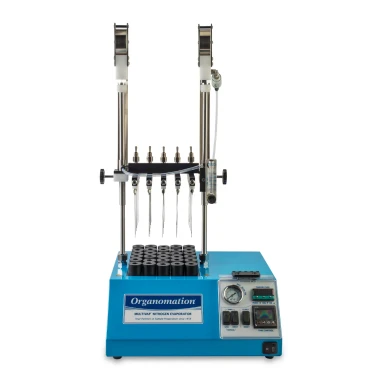

Organomation 30 Position MULTIVAP Nitrogen Evaporator

The Organomation 30 Position MULTIVAP is a high-capacity dry block nitrogen evaporator designed for parallel evaporation of up to 30 samples.

The system features a rectangular 5×6 gas distribution manifold and a dual post lifting assembly. Nitrogen is directed onto the sample surface, enabling rapid solvent evaporation and efficient concentration.

Each row of 5 samples can be independently switched on/off, allowing significant nitrogen savings when processing fewer samples.

The system operates with a heated aluminum dry block (30–120 °C) or as an ambient (unheated) version. Custom-made inserts and blocks ensure optimal heat transfer for specific sample sizes.

Key Features

• Up to 30 samples simultaneously (5×6 layout)
• High-temperature dry block: 30–120 °C
• Ambient (no heating) version available
• Direct nitrogen blowdown onto sample surface
• Row-based gas control (5 samples per row)
• Nitrogen flow: 0–25 L/min
• Built-in pressure regulator
• Digital temperature control and timer
• Dual spring hoist system
• Custom inserts for optimized heat transfer
• Compatible with organic solvents
• Optional acid-resistant version

Available Models

30 Position MULTIVAP – Dry Block

• Catalog number: 11830
• Heating type: Dry block
• Number of positions: 30
• Dimensions: 41 × 36 × 76 cm
• Temperature range: 30–120 °C
• Power: 900 W

30 Position MULTIVAP – No Heating

• Catalog number: 11830-O
• Heating type: None
• Number of positions: 30
• Dimensions: 33 × 38 × 66 cm
• Temperature: Ambient

Standard Features

• Adjustable flow meter: 0–25 L/min
• Gas distribution manifold (5×6)
• Nitrogen filter
• Built-in pressure reducing regulator
• Digital temperature controller (LED)
• Electronic timer
• Safety control cover plate
• High temperature limit switch
• Dual band hoist spring assembly

Options

• 220v wiring harness
• Z-Purge / positive pressure purge case
• Acid resistant coating
• Pasteur pipette adapters instead of needles
• Manifold and stand only (no heating platform)

Technical Specifications

General

• Number of positions: 30
• Layout: Rectangular (5×6)
• Spacing: 3.33 cm
• Sample diameter range: 16–30 mm OD
• Gas flow: 0–25 L/min
• Flow control: per row (5 samples)
• Gas input pressure: 30–110 psig
• Acid resistant coating: Optional

Needles

• Size: 102 mm × 19 ga
• Material: stainless steel
• Needle guide: optional

Lift Mechanism

• Type: Dual pulley & band springs
• Function: adjustable needle height

Heating Specifications

• Model: 9156
• Type: Aluminum dry block
• Dimensions: 41 × 36 × 15 cm
• Power: 900 W
• Temperature range: 30–120 °C
• Controller: digital electronic (LED)
• Accuracy: ±2 °C

Accessories

• Nitrogen generator
• Custom inserts
• Pasteur pipette adapters (not compatible with needle guide)
• Luer plugs
• Various needle sizes and gauges
