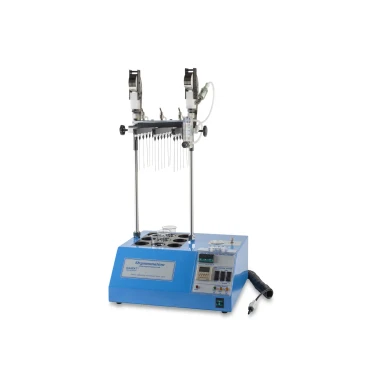

Organomation 9 Position MULTIVAP Nitrogen Evaporator

The Organomation 9 Position MULTIVAP is a high-temperature dry block nitrogen evaporator designed for large volume sample evaporation.

The system features a rectangular 3×3 gas distribution manifold and a dual post lifting assembly, allowing easy adjustment of needles or pipettes. Nitrogen is directed onto the sample surface, enabling rapid solvent evaporation and efficient sample concentration.

Each row of three positions can be individually switched on/off, allowing significant nitrogen savings when processing fewer samples.

The system operates with a heated aluminum dry block (30–120 °C) or as an ambient (unheated) version.

Key Features

• Up to 9 samples simultaneously (3×3 layout)
• High-temperature dry block: 30–120 °C
• Ambient (unheated) version available
• Direct nitrogen delivery onto sample surface
• Row-based gas control (3 samples per row)
• Nitrogen flow range: 0–25 L/min
• Built-in pressure regulator
• Digital temperature control and timer
• Dual spring hoist lifting system
• Includes 50 mm OD beakers
• Custom inserts available for different sample sizes
• Compatible with organic solvents
• Optional acid-resistant configuration

Available Models

9 Position MULTIVAP – Dry Block

• Catalog number: 11809
• Heating type: Dry block
• Number of positions: 9
• Dimensions: 41 × 36 × 76 cm
• Temperature range: 30–120 °C
• Power: 900 W

9 Position MULTIVAP – No Heating

• Catalog number: 11809-O
• Heating type: None
• Number of positions: 9
• Dimensions: 33 × 38 × 66 cm
• Temperature: Ambient

Standard Features

• Adjustable flow meter: 0–25 L/min
• Gas distribution manifold (3×3)
• Nitrogen filter
• Built-in pressure reducing regulator
• Electronic timer
• Digital temperature controller (LED)
• Safety control cover plate
• High temperature limit switch
• Dual band hoist spring assembly
• 9 beakers (50 mm OD included)

Options

• 220v wiring harness
• Z-Purge / positive pressure purge case
• Acid resistant coating
• Pasteur pipette adapters instead of needles
• Manifold and stand only (no heating platform)

Technical Specifications

General

• Number of positions: 9
• Layout: Rectangular (3×3)
• Spacing: 5.87 cm
• Standard vessels: 50 mm OD beakers
• Optional tube range: 16–40 mm OD
• Gas flow: 0–25 L/min
• Flow control: per row (3 samples)
• Gas input pressure: 30–110 psig
• Acid resistant coating: Optional

Needles

• Size: 102 mm × 16 ga
• Material: stainless steel
• Needle guide: optional for tubes

Lift Mechanism

• Type: Dual pulley & band springs
• Function: adjustable needle height

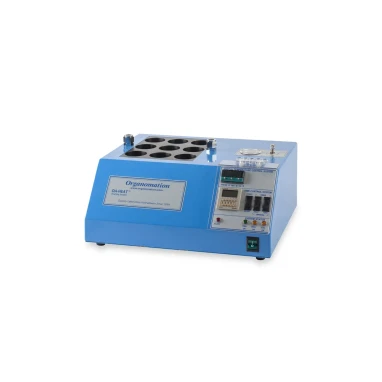

Heating Specifications

• Model: 9156
• Type: Aluminum dry block
• Dimensions: 41 × 36 × 15 cm
• Power: 900 W
• Temperature range: 30–120 °C
• Controller: digital electronic (LED)
• Accuracy: ±2 °C

Accessories

• Nitrogen generator
• Custom inserts
• Pasteur pipette adapters
• Luer plugs
• Various needle sizes and gauges
