33 1 3048 7200The right vial. A world of difference.
Reducing failed assays from unknown contaminant peaks and limiting instrument downtime from out of specification vials is a priority for your lab. Waters sample vials can help you do just that.
All Waters sample vials are held to the tightest dimensional tolerances. Manufactured via a 2-, 3-, or 4-step certification process, we ensure that Waters Certified Vials meet and maintain specified vial dimensions, levels of cleanliness and adsorption properties from batch to batch. Find the right vial for your application and autosampler - use our Vial Selector to find your perfect match.

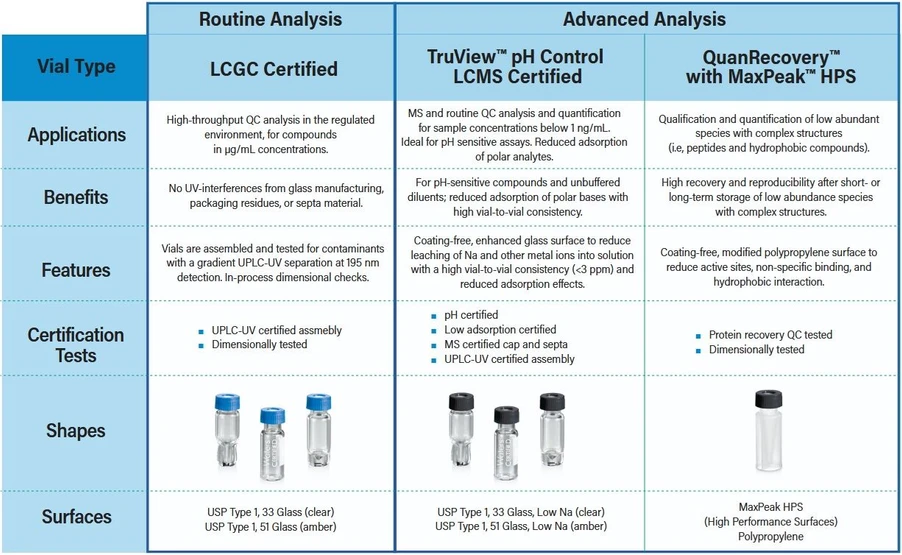

Waters CERTIFIED Vials: Table 1. Vials for Routine and Advanced Analyses.
✅ Dimensional Test
✅ Septum GC Test
✅ HPLC UV Test
✅ MS Scan
✅ Dimensional Test
✅ Septum GC Test
✅ HPLC UV Test
✅ MS Scan
✅ Low Adsorption Test
✅ Dimensional Test
✅ Septum GC Test
✅ HPLC UV Test

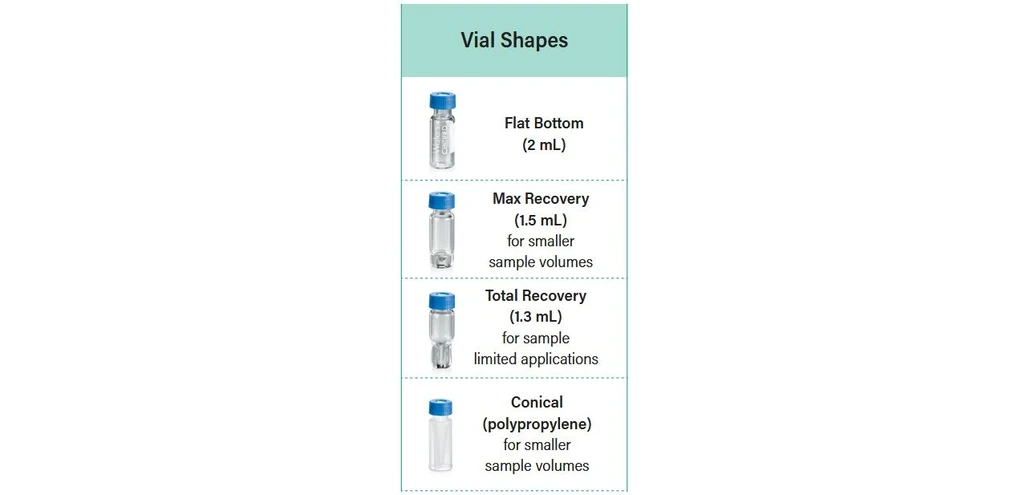

Waters CERTIFIED Vials: Vials Shapes.
Don’t let the presence of background noise impact your results, causing data quality risks and unexpected or ghost peaks. Background noise can come from many factors. One of the most important factors are vial and septa cleanliness, which introduces contamination peaks. Ghost peaks are introduced by analyte degradation that can be triggered by significant pH changes in the diluent. In this chromatogram, the top shows normal behavior, and the bottom chromatogram shows ghost peaks.
Waters Certified vials are cleanliness tested so you don’t have to worry about contaminant peaks. The TruView pH Control Vials are certified to minimize and control a pH shift away from the neutral.

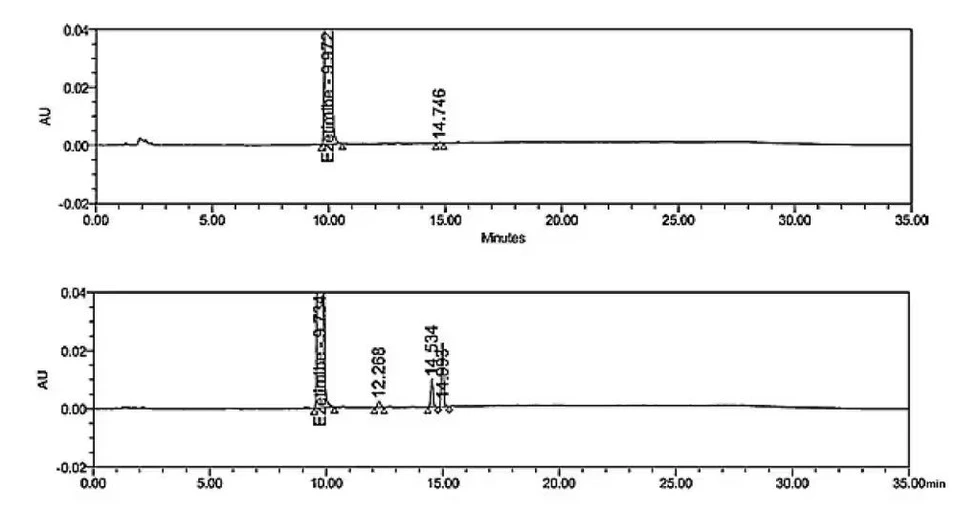

Waters CERTIFIED Vials: Prevent the appearance of unexpected peaks during LC/UV analysis with Waters LC/GC Certified Vials as a control strategy.
Stop losing valuable development time on troubleshooting due to analyte loss from non-specific adsorption. Waters TruView pH Control LCMS Certified Vials have the lowest adsorptive losses on the market, and you can rely on them to provide consistency from batch to batch and vial to vial. This chromatogram shows a comparison of adsorptive loss of chlorhexidine in a variety of vials.

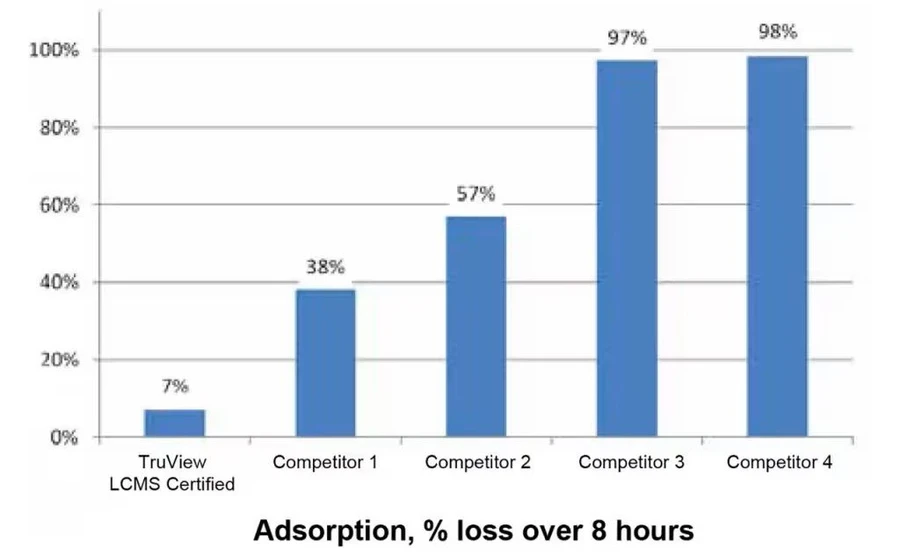

Waters CERTIFIED Vials: Comparison of adsorptive loss of chlorhexidine acetate in a variety of vials.
LCMS Certified Vials are suited for analyte concentrations in the 100s ng/mL concentration. Waters LCMS Certified Vials are tested by MS scans from 250 to 1000 m/z with specifications set on the total ion count and presence of clusters in the high mass range. This chromatogram shows a comparison of typical MS scans of Waters LCMS Certified Vials to vials of other sources and clean solvents.

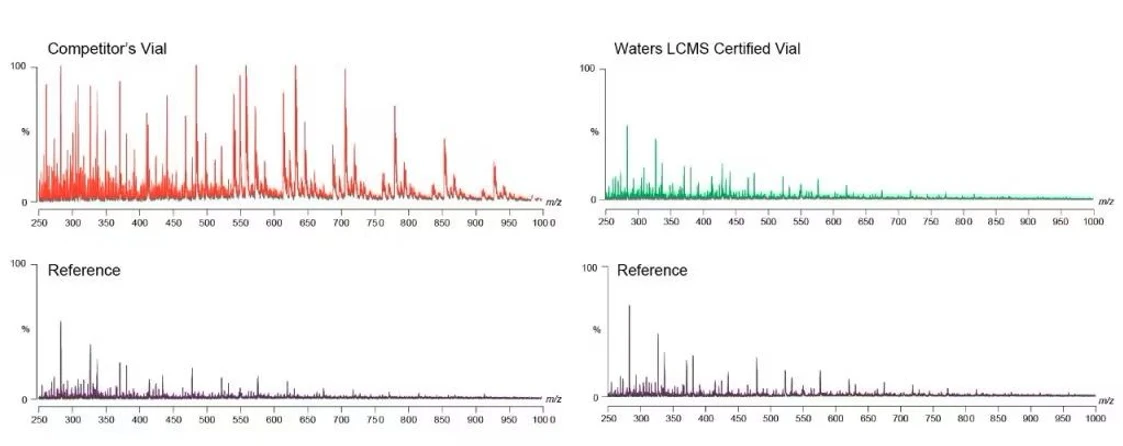

Waters CERTIFIED Vials: Comparing typical MS scans of Waters LCMS Certified Vials, with vials from other sources.
The analysis of low abundance species, pH sensitive analytes or not yet well understood compound mixtures benefit from consistent and well controlled vial surfaces. The glass surface of TruView pH Control LCMS Certified Vials minimizes pH shifts away from the neutral and thus eliminates unwanted reactions and resulting ghost peaks. Ghost peaks are very difficult to troubleshoot.
Waters TruView pH Control LCMS Certified vials were used to analyze two compounds, drospirenone and lovastatin. The TruView pH Control LCMS Certified Vials show little to no degradant formed over the time tested. Standard glass vials showed considerable degradant formation over the same testing time with irreproducible formation of the degradant across different vials.
Waters CERTIFIED Vials: UV peak areas of lovastatin degradant across replicate vials and different vial types. Error bars indicate standard deviation for the replicate injection peak area.
Inconsistent analytical results from small molecule analyte adsorption onto the surface of glass vials can be a problem at today’s low analyte concentrations. Some scientists have even experienced total analyte loss with samples stored in vials for an extended time. The vial chemistry, specifically the glass surface, is the major contributor to this problem.
Polar analytes may adsorb to the glass vial surface by polar-polar interaction and/or ion exchange mechanisms, thereby reducing the overall amount of sample in solution. TruView Certified LCMS Vials reduce this problem dramatically due to a stringent manufacturing process. The process yields a glass surface that has a lower concentration of free ions on the surface.
Waters CERTIFIED Vials: Nortriptyline at 1 ppb concentration in several vials. The tall peak is the initial injection; the smaller peak (overlaid) is the four-hour injection. The first two chromatograms are competitor’s vials. The third chromatogram is for the Waters TruView LCMS Certified vial.
Instrument development is yielding more sensitive mass spectrometers. With more sensitive instruments, analytes can be detected at pg/mL levels. At these concentrations, understanding adsorption issues is critical for good quantitative results. We tested adsorption loss for the major manufacturers and saw high sample loss across manufacturers and clear and amber glass types – with significantly less loss with Waters TruView Autosampler Vials.
Manufacturer: Clear Glass / Amber Glass
