Protect and Increase the Lifetime of Your GC Column
Why Use Pre-Packed Liners?
Though the upfront cost of self-packing your liner may seem attractive, the time and headaches caused by resulting tailing or irreproducible peaks can be sizeable! Self-packed wool fibers commonly break during installation and any existing deactivation on the liner can also be scratched or damaged. Pre-packed Zebron PLUS liners undergo the deactivation process with the quartz wool already in place, which ensures that any active sites that form during packing are not exposed.
Deactivation Protects Your Samples

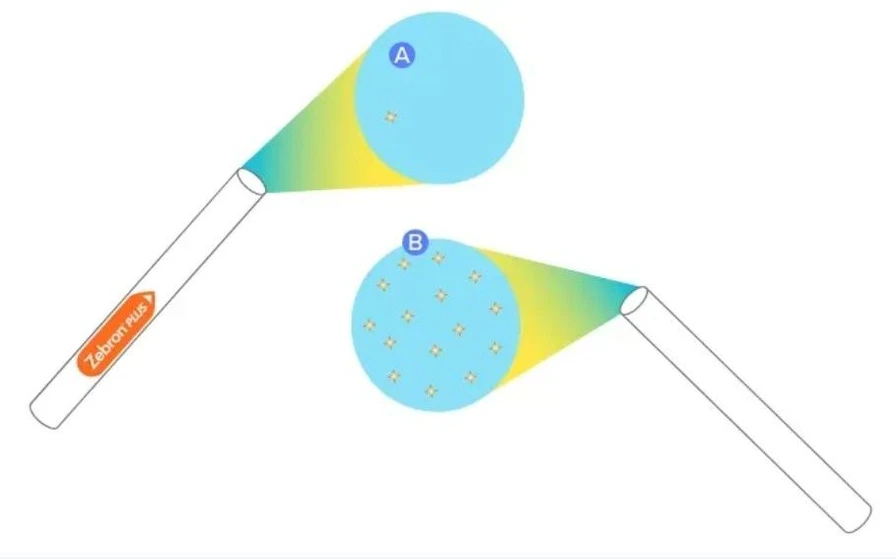

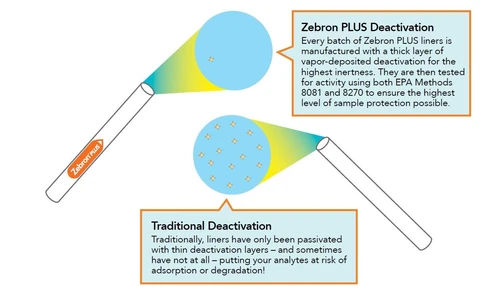

See the difference: Zebron PLUS vs. Traditional Deactivation
Zebron PLUS GC inlet liners undergo a unique deactivation process, resulting in a remarkably inert pathway that prevents sample adsorption and degradation for active compounds.
A: Zebron PLUS Deactivation
Every batch of Zebron PLUS liners is manufactured with a thick layer of vapor-deposited deactivation for the highest inertness. They are then tested for activity using both EPA Methods 8081 and 8270 to ensure the highest level of sample protection possible.
B: Traditional Deactivation
Traditionally, liners have only been passivated with thin deactivation layers – and sometimes have not at all – putting your analytes at risk of adsorption or degradation!
Phenomenex: Zebron PLUS vs. Traditional Deactivation
Easy, Touch free Installation
- Remarkably inert GC inlet liners for superior sample protection
- Easy to install, touchless packaging allows you to protect yourself from cuts or breakage
- Eliminates contamination that may occur during the installation process
A: Pre-installed o-ring saves steps
B: Touchless installation prevents contamination
Phenomenex: Easy, Touch free Installation of Zebron GC Inlet Liner

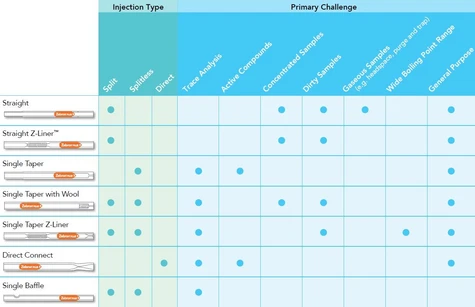

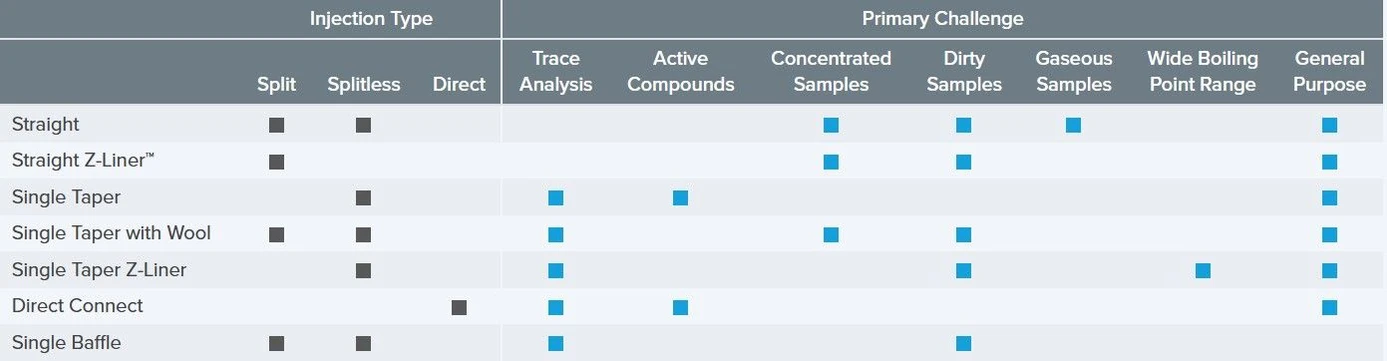

Liner Geometry Improves Performance
The geometry of a liner refers to the type and shape of a liner. Each geometry addresses a particular sample or injection type. use the chart below to determine the best geometry for your sample.
Phenomenex: Liner Geometry Improves Performance
Choose Your Liner
For Agilent® or Thermo Scientific® GC Systems
- Direct Connect - Trace analysis, Splitless injections (4 x 78.5 mm)
- Part Nos: AG2-0A50-01, AG2-0A50-05, AG2-0A50-25
- Single Taper - Pesticides (4 x 78.5 mm)
- Part Nos: AG2-0A10-01, AG2-0A10-05, AG2-0A10-25
- Single Taper Z-Liner™ - Semi-volatiles, Dirty samples (4 x 78.5 mm)
- Part Nos: AG2-0A13-01, AG2-0A13-05, AG2-0A13-25
- Single Taper with Wool - Semi-volatiles (4 x 78.5 mm)
- Part Nos: AG2-0A11-01, AG2-0A11-05, AG2-0A11-25
- Straight - Volatiles (4 x 78.5 mm)
- Part Nos: AG2-0A00-01, AG2-0A00-05, AG2-0A00-25
- Straight Z-Liner™ - Dirty samples, Volatiles, High initial oven temperatures (4 x 78.5 mm)
- Part Nos: AG2-0A03-01, AG2-0A03-05, AG2-0A03-25
- Straight Single Baffle - Semi-volatiles, Pesticides (1.8 x 71 mm)
- Part Nos: AG2-1F06-01, AG2-1F06-05, AG2-1F06-25
For PerkinElmer® GC Systems
- Single Taper - Pesticides (4 x 92 mm)
- Part Nos: AG2-2A10-01, AG2-2A10-05, AG2-2A10-25
- Single Taper Z-Liner™ - Semi-volatiles, Dirty samples (4 x 92 mm)
- Part Nos: AG2-2A13-01, AG2-2A13-05, AG2-2A13-25
- Straight - Volatiles (4 x 92 mm)
- Part Nos: AG2-2A00-01, AG2-2A00-05, AG2-2A00-25
- Straight Z-Liner™ - Volatiles, Dirty samples (2 x 86.2 mm)
- Part Nos: AG2-2E03-01, AG2-2E03-05, AG2-2E03-25
- Straight Z-Liner™ - High initial oven temperatures (4 x 92 mm)
- Part Nos: AG2-2A03-01, AG2-2A03-05, AG2-2A03-25
For Shimadzu® GC Systems
Shimadzu 17A GC Systems
- Single Taper Z-Liner™ - Pesticides (3.4 x 95 mm)
- Part Nos: AG2-3B13-01, AG2-3B13-05, AG2-3B13-25
- Straight Z-Liner™ - Volatiles, Dirty samples, High initial oven temperatures (3.4 x 95 mm)
- Part Nos: AG2-3B03-01, AG2-3B03-05, AG2-3B03-25
Shimadzu 2010 GC Systems
- Single Taper - Pesticides (3.4 x 95 mm)
- Part Nos: AG2-4B10-01, AG2-4B10-05, AG2-4B10-25
- Single Taper Z-Liner™ - Semi-volatiles, Dirty samples (3.4 x 95 mm)
- Part Nos: AG2-4B13-01, AG2-4B13-05, AG2-4B13-25
- Straight - Volatiles (3.4 x 95 mm)
- Part Nos: AG2-4B00-01, AG2-4B00-05, AG2-4B00-25
- Straight Z-Liner™ - Volatiles, Dirty samples, High initial oven temperatures (3.4 x 95 mm)
- Part Nos: AG2-4B03-01, AG2-4B03-05, AG2-4B03-25
