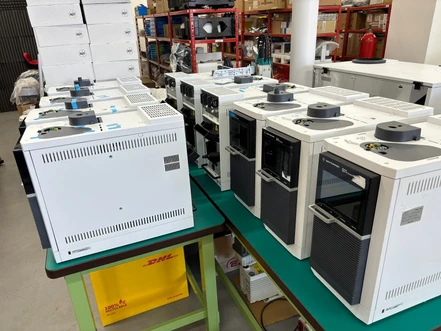

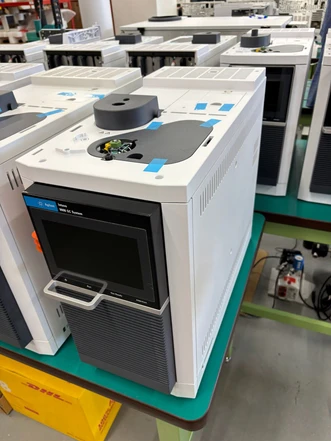

Agilent Intuvo 9000 GC System, S/SL, G3950A (Refurbished)

The Agilent Intuvo 9000 GC System with a split/splitless (S/SL) inlet is a next-generation gas chromatograph designed for high analytical performance, precise chromatographic control, and simplified routine maintenance. Its patented Intuvo architecture replaces the conventional GC oven with direct column heating, enabling faster heating and cooling cycles, shorter analysis times, and reduced energy consumption.

The system is equipped with an S/SL inlet featuring full electronic pneumatic control (EPC) and can be easily expanded with FID, TCD, ECD, NPD, FPD, SCD/NCD, or single and triple quadrupole mass spectrometry detectors.

Integrated Click-and-Run, Smart ID Key, and Guard Chip technologies simplify column installation, reduce leak risks, and extend column lifetime. Combined with precise pressure control, automatic leak checking, and compensation for environmental changes, the Intuvo 9000 provides a versatile platform for both routine and advanced GC applications.

Key Features

• Patented Intuvo direct-heating column technology
• Split/splitless (S/SL) inlet with full electronic pneumatic control
• Expandable with FID, TCD, ECD, NPD, FPD, SCD/NCD, or MS detectors
• Click-and-Run tool-free column connections
• Integrated Guard Chip for column protection
• Smart ID Key for automatic column identification
• Color touchscreen with built-in contextual help
• Web interface for remote system monitoring
• Automatic leak checking
• Automatic compensation for ambient pressure and temperature changes
• Pressure control resolution of 0.001 psi
• Compact footprint requiring approximately half the bench space of a conventional GC

Configuration options

• Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
• TCD detector, FID or GC/MS Agilent 5975, 5977, 7000, 7010
• Chromatography software Agilent OpenLab or DataApex Clarity

Technical Specifications:

Gas Chromatograph

• Model: Agilent Intuvo 9000 GC
• Direct-heating column architecture
• Retention time repeatability: <0.008% or <0.0008 min
• Peak area repeatability: <1% RSD

Supported Modules

• Inlets: S/SL, MMI
• Optional detectors: FID, TCD, ECD, NPD, FPD, SCD/NCD
• Compatible with single and triple quadrupole GC/MS
• Supports up to four detector signals

Chromatographic System

• Up to two 30 m × 0.320 mm capillary columns or one 60 m × 0.320 mm column
• Column IDs: 0.150–0.320 mm
• Operating temperature: Ambient +10 °C to 450 °C
• Temperature resolution: 0.1 °C
• Up to 20 temperature ramps and 21 plateaus
• Maximum heating rate: 250 °C/min
• Cool-down from 450 °C to 50 °C in less than 3 minutes
• Maximum run time: 999.99 minutes

Electronic Pneumatic Control (EPC)

• Pressure resolution: 0.001 psi
• Pressure range: 0–150 psi
• Selectable units: psi, kPa, or bar
• Constant pressure, pressure ramp, constant flow, and flow ramp modes
• Automatic atmospheric pressure and temperature compensation
• Automatic leak checking
• Supports He, H₂, N₂, and Ar/CH₄ carrier gases

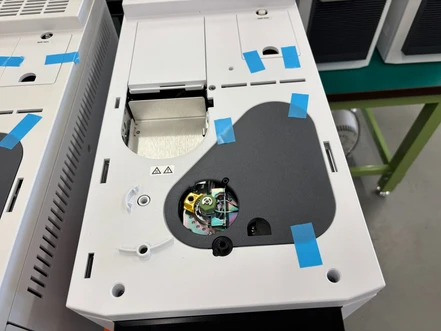

Split/Splitless Inlet

• Maximum operating temperature: 400 °C
• Split ratios up to 12,500:1
• Splitless mode with pressure pulsing
• Gas Saver mode
• Electronic septum purge control
• Total flow range:
  • 0–500 mL/min (N₂)
  • 0–1250 mL/min (He or H₂)
• Turn-Top inlet sealing system
• Optional inert inlet configuration
