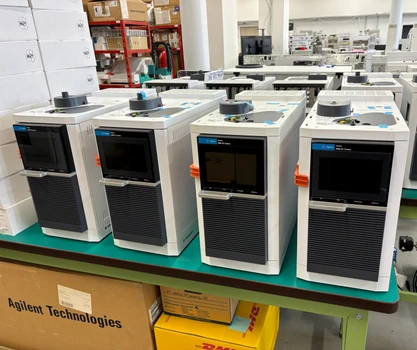

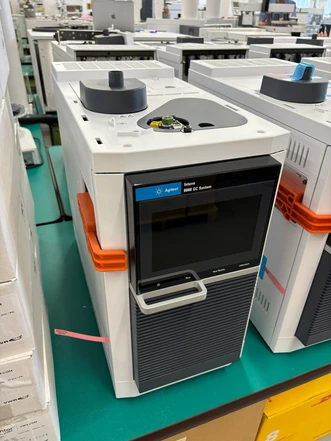

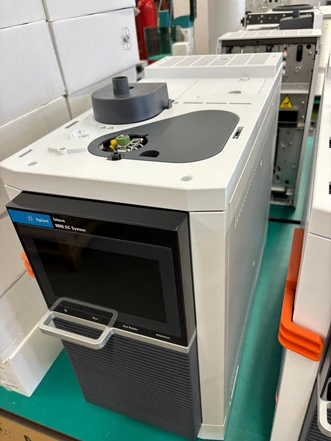

Agilent Intuvo 9000 GC System, S/SL, FID, G3950A (Refurbished)

The Agilent Intuvo 9000 GC System with a split/splitless (S/SL) inlet and flame ionization detector (FID) is designed for laboratories seeking higher productivity, greater instrument uptime, and faster chromatographic workflows. By combining direct-heating column technology with simplified maintenance and intelligent gas-flow management, the system helps maximize daily sample throughput while reducing operating costs.

The patented Intuvo platform eliminates many of the maintenance procedures associated with conventional gas chromatographs. Click-and-Run technology enables rapid replacement of columns and consumables without tools, while the integrated Guard Chip protects the analytical column from contamination and extends its lifetime. The result is reduced downtime, improved laboratory efficiency, and consistently reliable analytical performance during routine operation.

Key Features

• Split/Splitless inlet for flexible injection modes
• Flame Ionization Detector for sensitive hydrocarbon quantification
• Direct heating oven with ramp rates up to 250 °C/min
• Fast cool-down from 450 °C to 50 °C in under 3 minutes
• Ferrule-free microfluidic connections (“click-and-run”)
• Guard Chips protecting columns and downstream components
• Integrated Capillary Flow Technology (CFT) with backflush capability
• Intelligent diagnostics monitoring >100 parameters in real time
• Compact footprint and reduced power consumption
• Large touchscreen interface with wireless connectivity

Configuration options

• Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
• Additional TCD detectors or GC/MS Agilent 5975, 5977, 7000, 7010
• Chromatography software Agilent OpenLab or DataApex Clarity

Technical Specifications:

• Part Number: G3950A
• Product Name: Intuvo 9000 GC System, S/SL Inlet, FID
• Inlet Type: Split/Splitless (S/SL)
• Detector: Flame Ionization Detector (FID)
• Interface: Touchscreen / OpenLab CDS software / DataApex Clarity software
• Connectivity: LAN, USB
• Maximum temperature ramp rate: 250 °C/min
• Operating temperature range: Ambient +10 °C to 450 °C
• Oven cool-down: 450 °C → 50 °C in < 3 min
• Pressure control resolution: 0.001 psi
• Capillary Flow Technology: Integrated
• Peak area repeatability: < 1% RSD
• Retention time repeatability: < 0.008%

Typical Applications

• Quality control laboratories
• Food testing
• Pharmaceutical manufacturing
• Chemical industry
• Petrochemical analysis
• Environmental laboratories
• Routine analytical testing
• Industrial quality assurance
