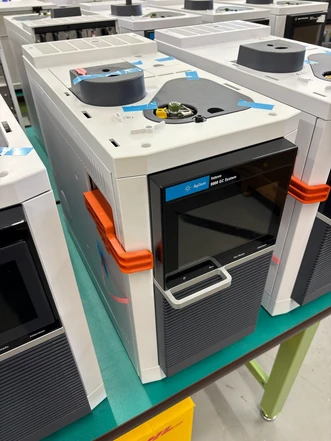

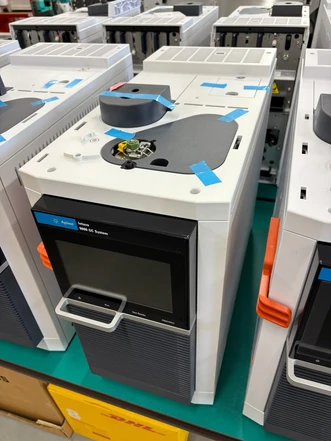

Agilent Intuvo 9000 GC System, S/SL, FID, G3950A (Refurbished)

The Agilent Intuvo 9000 GC System with a split/splitless (S/SL) inlet and flame ionization detector (FID) represents a new generation of gas chromatography designed to improve laboratory efficiency, simplify maintenance, and deliver highly reproducible chromatographic performance. Replacing the conventional GC oven with Agilent's patented direct-heating architecture, the Intuvo platform enables faster analyses, lower energy consumption, and a more streamlined laboratory workflow.

The system incorporates Click-and-Run technology, allowing columns, inlets, and detectors to be replaced quickly without tools. Integrated Guard Chip technology protects the analytical column from contamination, extending column lifetime, while electronic pneumatic control (EPC) provides precise pressure and flow regulation. Configured with an S/SL inlet and FID detector, the Intuvo 9000 offers a versatile solution for routine analysis of organic compounds across a wide range of industries.

Key Features

• Split/Splitless inlet for flexible injection modes
• Flame Ionization Detector for sensitive hydrocarbon quantification
• Direct heating oven with ramp rates up to 250 °C/min
• Fast cool-down from 450 °C to 50 °C in under 3 minutes
• Ferrule-free microfluidic connections (“click-and-run”)
• Guard Chips protecting columns and downstream components
• Integrated Capillary Flow Technology (CFT) with backflush capability
• Intelligent diagnostics monitoring >100 parameters in real time
• Compact footprint and reduced power consumption
• Large touchscreen interface with wireless connectivity

Configuration options

• Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
• Additional TCD detectors or GC/MS Agilent 5975, 5977, 7000, 7010
• Chromatography software Agilent OpenLab or DataApex Clarity

Technical Specifications:

• Part Number: G3950A
• Product Name: Intuvo 9000 GC System, S/SL Inlet, FID
• Inlet Type: Split/Splitless (S/SL)
• Detector: Flame Ionization Detector (FID)
• Interface: Touchscreen / OpenLab CDS software / DataApex Clarity software
• Connectivity: LAN, USB
• Maximum temperature ramp rate: 250 °C/min
• Operating temperature range: Ambient +10 °C to 450 °C
• Oven cool-down: 450 °C → 50 °C in < 3 min
• Pressure control resolution: 0.001 psi
• Capillary Flow Technology: Integrated
• Peak area repeatability: < 1% RSD
• Retention time repeatability: < 0.008%

Typical Applications

• Routine gas chromatography
• Food analysis
• Pharmaceutical quality control
• Petrochemical analysis
• Environmental testing
• Chemical manufacturing
• Forensic laboratories
• Solvent analysis
• Hydrocarbon analysis
• Research laboratories
