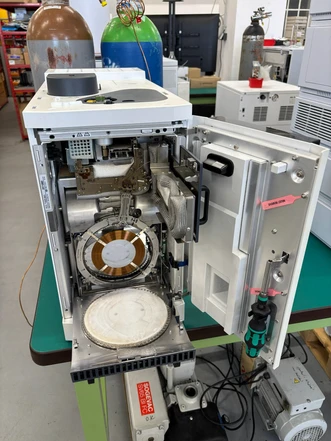

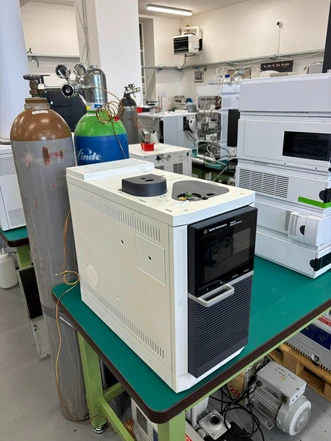

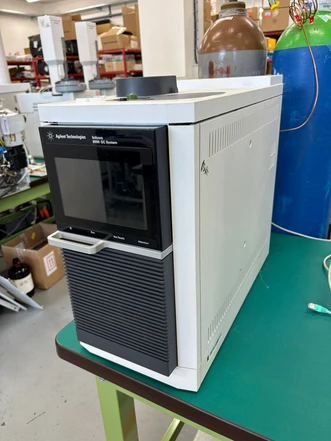

Agilent Intuvo 9000 GC System, S/SL, FID (FAME Analyzer), G3950A (Refurbished)

The Agilent Intuvo 9000 GC System S/SL FID (G3950A) is a gas chromatograph designed for fast, reproducible, and highly efficient fatty acid methyl ester (FAME) analysis. Configured with a split/splitless (S/SL) inlet, flame ionization detector (FID), and the Agilent J&W DB-FastFAME Intuvo column, the system delivers rapid and selective separation of saturated and unsaturated FAMEs, including challenging cis/trans isomers.

The DB-FastFAME column features a highly polar cyanopropyl stationary phase engineered specifically for FAME analysis. Compared with conventional 100 m columns, it enables complete FAME separations in less than eight minutes while maintaining excellent chromatographic resolution. The system is well suited for the analysis of milk fat, vegetable oils, fish oils, and other lipid matrices, while supporting AOAC, AOCS, and IOC analytical methods.

Key Features

• Split/splitless (S/SL) inlet
• Flame ionization detector (FID)
• Agilent J&W DB-FastFAME Intuvo column included
• Complete FAME separation in under 8 minutes
• Selective separation of saturated and unsaturated fatty acid methyl esters
• Excellent resolution of cis/trans FAME isomers
• Suitable for milk fat, vegetable oil, and fish oil analysis
• Individually tested column ensuring reproducible equivalent chain length (ECL) values
• Compliant with AOAC, AOCS, and IOC analytical methods
• Bonded, crosslinked, and solvent-rinseable stationary phase
• Intuvo column technology for simplified installation and maintenance
• Smart Key for automatic column recognition

Configuration options

• Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
• Additional TCD detectors or GC/MS Agilent 5975, 5977, 7000, 7010
• Chromatography software Agilent OpenLab or DataApex Clarity

Technical Specifications:

• Part Number: G3950A
• Product Name: Intuvo 9000 GC System, S/SL Inlet, FID
• Inlet Type: Split/Splitless (S/SL)
• Detector: Flame Ionization Detector (FID)
• Column: Agilent J&W DB-FastFAME Intuvo (G3909-63005)
  • Length: 20 m
  • Internal Diameter: 0.18 mm
  • Film Thickness: 0.20 µm
  • Stationary Phase: DB-FastFAME (cyanopropyl)
  • Polarity: High
  • Capillary: Fused silica
  • Temperature Range: 40–250/260 °C
  • Format: Intuvo
  • Smart Key: Yes
• Interface: Touchscreen / OpenLab CDS software / DataApex Clarity software
• Connectivity: LAN, USB
• Maximum temperature ramp rate: 250 °C/min
• Operating temperature range: Ambient +10 °C to 450 °C
• Oven cool-down: 450 °C → 50 °C in < 3 min
• Pressure control resolution: 0.001 psi
• Capillary Flow Technology: Integrated
• Peak area repeatability: < 1% RSD
• Retention time repeatability: < 0.008%

Typical Applications

• Fatty acid methyl ester (FAME) analysis
• Food quality control
• Milk fat analysis
• Vegetable oil analysis
• Fish oil analysis
• EPA and DPA determination
• Cis/trans isomer separation
• Food testing laboratories
• Lipid research
