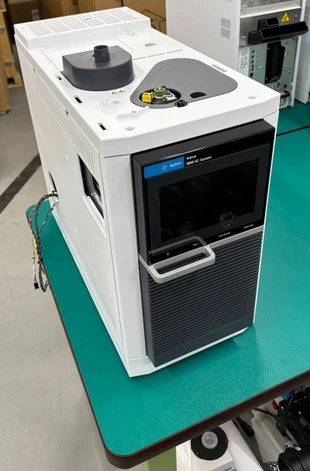

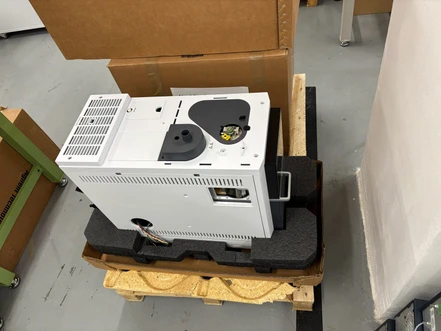

Agilent Intuvo 9000 GC System, S/SL, FID, G3950A (Refurbished)

The Agilent Intuvo 9000 GC System is an innovative gas chromatograph designed for high-speed, high-throughput, and energy-efficient GC workflows. Featuring a unique direct-heating architecture, ferrule-free connections, and intelligent diagnostic capabilities, the system delivers simplified operation, faster analysis, and significantly reduced power and helium consumption compared to conventional GC systems.

Key Features

• Split/Splitless inlet for flexible injection modes
• Flame Ionization Detector for sensitive hydrocarbon quantification
• Direct heating oven with ramp rates up to 250 °C/min
• Fast cool-down from 450 °C to 50 °C in under 3 minutes
• Ferrule-free microfluidic connections (“click-and-run”)
• Guard Chips protecting columns and downstream components
• Integrated Capillary Flow Technology (CFT) with backflush capability
• Intelligent diagnostics monitoring >100 parameters in real time
• Compact footprint and reduced power consumption
• Large touchscreen interface with wireless connectivity

Configuration options

• Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
• Additional TCD detectors or GC/MS Agilent 5975, 5977, 7000, 7010
• Chromatography software Agilent OpenLab or DataApex Clarity

Technical Specifications:

• Part Number: G3950A
• Product Name: Intuvo 9000 GC System, S/SL Inlet, FID
• Inlet Type: Split/Splitless (S/SL)
• Detector: Flame Ionization Detector (FID)
• Interface: Touchscreen / OpenLab CDS software / DataApex Clarity software
• Connectivity: LAN, USB
• Maximum temperature ramp rate: 250 °C/min
• Operating temperature range: Ambient +10 °C to 450 °C
• Oven cool-down: 450 °C → 50 °C in < 3 min
• Pressure control resolution: 0.001 psi
• Capillary Flow Technology: Integrated
• Peak area repeatability: < 1% RSD
• Retention time repeatability: < 0.008%
