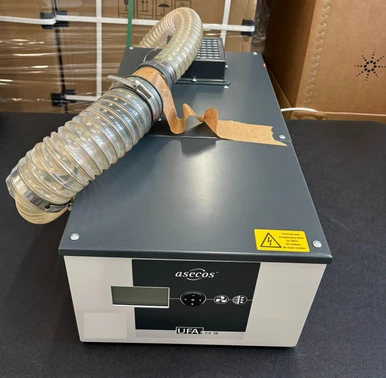

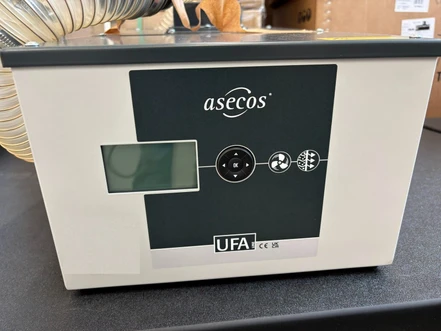

Asecos UFA.025.030 Recirculating air filter system, UFA.025.030 (Tested)

The Asecos UFA.025.030 is a compact recirculating air filtration system designed for safe capture and filtration of solvent vapors and hydrocarbons in laboratory environments. The system is intended for use with safety storage cabinets and provides active personnel protection through multi-stage filtration, filter monitoring, and integrated alarm functionality. Its low-noise operation and flexible installation options make it ideal for modern laboratory applications.

Key Features

• Recirculating filtration system for solvent vapors and hydrocarbons
• Vapor retention efficiency greater than 99.999%
• Active personnel protection against hazardous vapors
• Suitable for safety storage cabinets
• Compact plug-in design
• Flexible laboratory installation
• Multi-stage filtration system
• Integrated secondary filter
• Exhaust air and filter monitoring
• Optical and acoustic alarm system
• Potential-free alarm contact
• Key control panel with status indication
• Extremely low noise level of only 23 dB(A)
• ATEX-compliant design

Technical Specifications

• Vapor Retention Efficiency: >99.999%
• ATEX Classification: II 3/-G Ex ic nA IIB T4 Gc
• Housing Material: Powder-coated sheet steel
• Voltage: 85–264 V
• Current Consumption: 0.13 A
• Noise Level: 23 dB(A)
• Dimensions (W × D × H): 308 × 555 × 256 mm
• Weight: 17 kg
