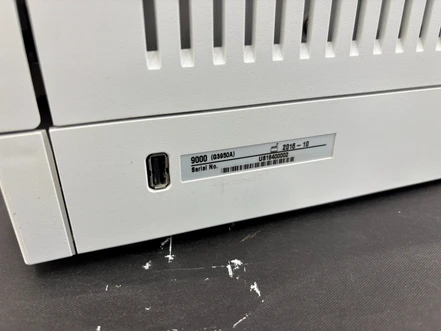

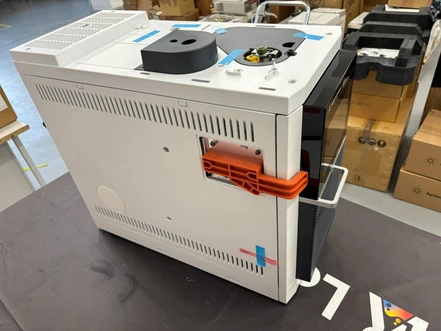

Agilent Intuvo 9000 GC System, S/SL, FID, G3950A (Tested)

The Agilent Intuvo 9000 GC System configured with a Split/Splitless (S/SL) inlet and Flame Ionization Detector (FID) is an intelligent gas chromatograph designed for high-throughput analytical workflows requiring robust quantitative performance and simplified maintenance.

The Intuvo platform features direct column heating and an integrated microfluidic flow path architecture that eliminates traditional ferrules and manual column trimming. This configuration provides reliable hydrocarbon detection using FID and flexible injection capability through the S/SL inlet, making it suitable for environmental, petrochemical, food, and routine QC applications.

Key Features

• Split/Splitless inlet for flexible injection modes
• Flame Ionization Detector for sensitive hydrocarbon quantification
• Direct heating oven with ramp rates up to 250 °C/min
• Ferrule-free microfluidic connections (“click-and-run”)
• Guard Chips protecting columns and downstream components
• Integrated Capillary Flow Technology (CFT) with backflush capability
• Intelligent diagnostics monitoring >100 parameters in real time
• Compact footprint and reduced power consumption
• Large touchscreen interface with wireless connectivity

Configuration options

• Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
• Additional TCD detectors or GC/MS Agilent 5975, 5977, 7000, 7010
• Chromatography software Agilent OpenLab or DataApex Clarity

Technical Specifications:

• Part Number: G3950A
• Product Name: Intuvo 9000 GC System, S/SL Inlet, FID
• Inlet Type: Split/Splitless (S/SL)
• Detector: Flame Ionization Detector (FID)
• Interface: Touchscreen / OpenLab CDS software / DataApex Clarity software
• Connectivity: LAN, USB
• Maximum temperature ramp rate: 250 °C/min
• Operating temperature range: Ambient +10 °C to 450 °C
• Oven cool-down: 450 °C → 50 °C in < 3 min
• Pressure control resolution: 0.001 psi
• Capillary Flow Technology: Integrated
• Peak area repeatability: < 1% RSD
• Retention time repeatability: < 0.008%
