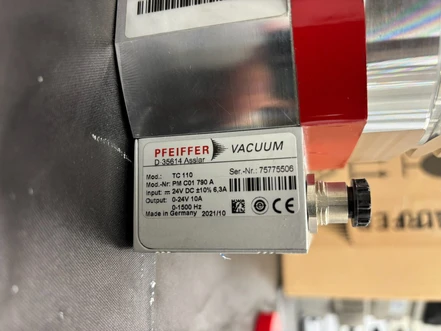

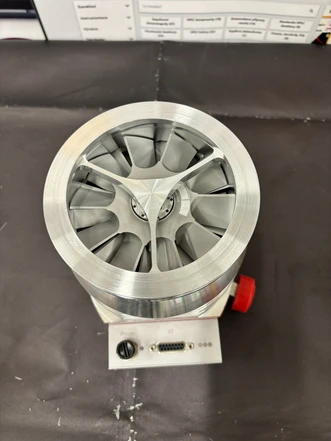

Pfeiffer turbo pump HiPace 300 for GC 5975 series, G3170-80162 (Tested)

The Pfeiffer HiPace 300 Turbo Pump (G3170-80162) is a high-performance turbomolecular pump designed to deliver reliable high-vacuum generation for Agilent 5975 Series GC/MS systems. Engineered by Pfeiffer Vacuum and integrated by Agilent, this pump ensures stable, oil-free operation ideal for mass spectrometry applications requiring high sensitivity and clean vacuum conditions.

Key Features

• Original Pfeiffer turbomolecular pump for Agilent GC/MS
• Provides stable high-vacuum conditions for MS ion optics and analyzer
• Optimized for Agilent 5975 Series GC/MS platforms
• Supports improved sensitivity and analytical reproducibility
• Designed for reliable long-term operation and service replacement

Technical Specifications

• Pump type: Turbomolecular (HiPace 300)
• Pumping speed: ~260–300 L/s for N₂
• Ultimate pressure: < 1 × 10⁻⁷ mbar
• Bearing type: Hybrid/magnetic bearing (low maintenance)
• Cooling method: Air-cooled or optional water cooling
• Mounting orientation: Flexible (horizontal or vertical)
• Input voltage: Typically 24 V DC (via Agilent controller)
• Compatibility:
  • Agilent 5975 GC/MS
  • Agilent 5975B
  • Agilent 5975C
  • Agilent 5975C-TAD
• Operating environment: Continuous, high-throughput GC/MS operation
• Manufacturer: Pfeiffer Vacuum, integrated and tested by Agilent
• Part number: G3170-80162
